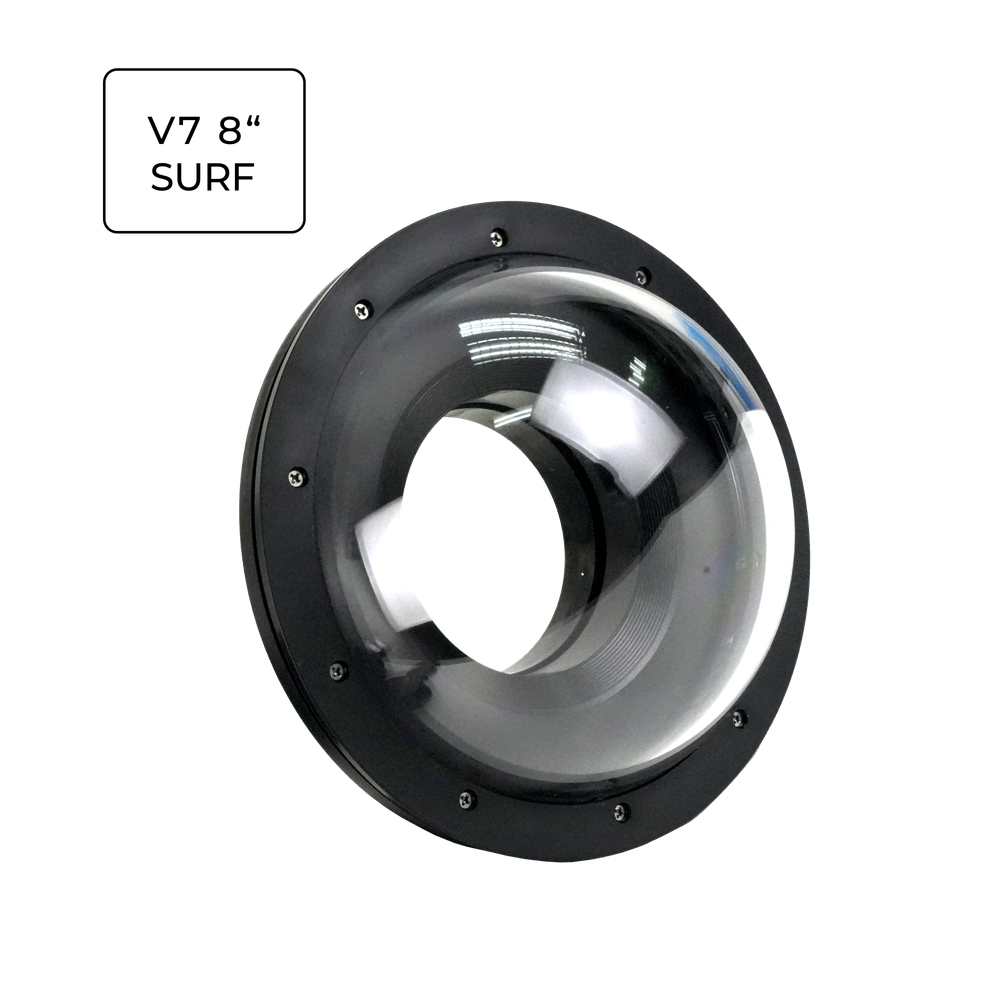

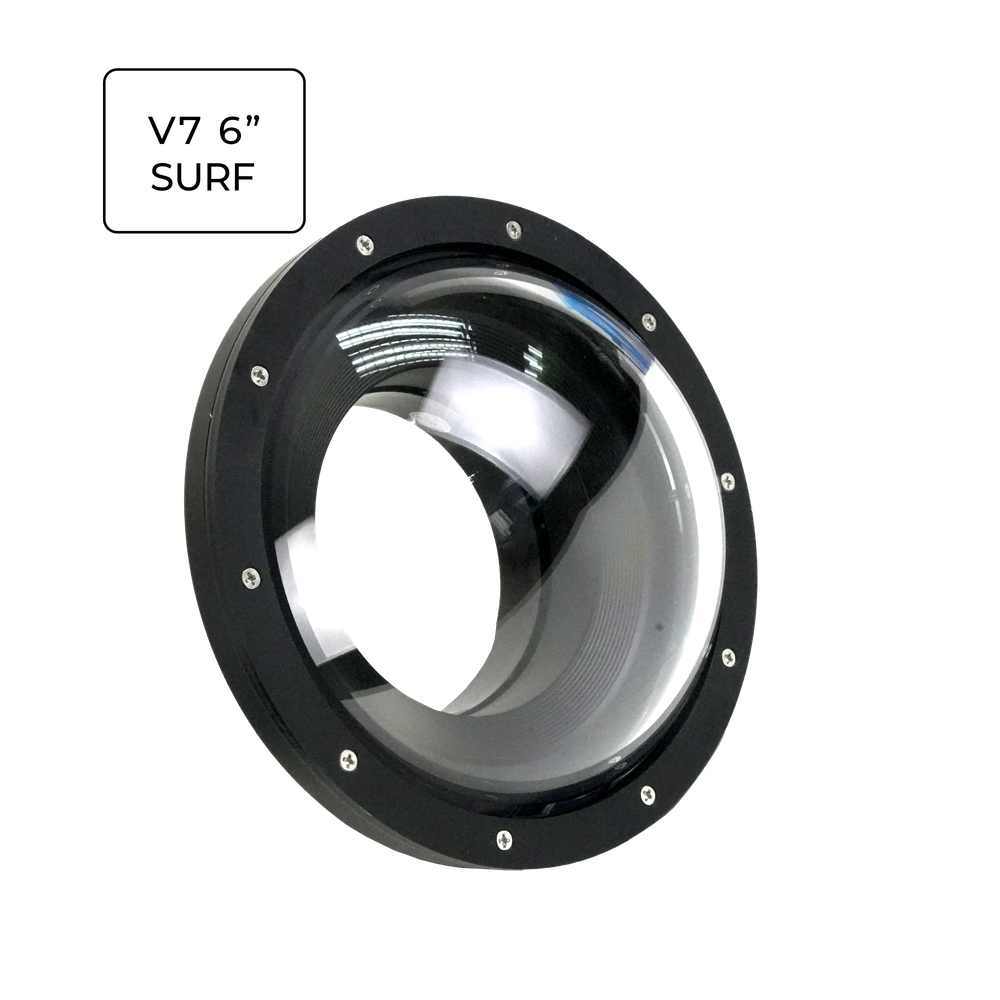

Sea Frogs V7 6'' Acrylic Dome Ports for Underwater Camera Housings
6"|Acrylic|V7 Dome Port|90mm Bayonet
The Sea Frogs 6" Acrylic Dome Port V7 comes with its 37mm (1.46'') extension adapter ring. Designed with a 90mm (3.54'') bayonet mount. It is compatible with most Sea Frogs/Salted Line underwater housings, excluding A6xxx and RX1xx series models.
Key Features
- Standard Sea Frogs 90mm Bayonet Mount
- 37mm Extension Adapter Ring
- Dome Diameter 152.4mm (6″)

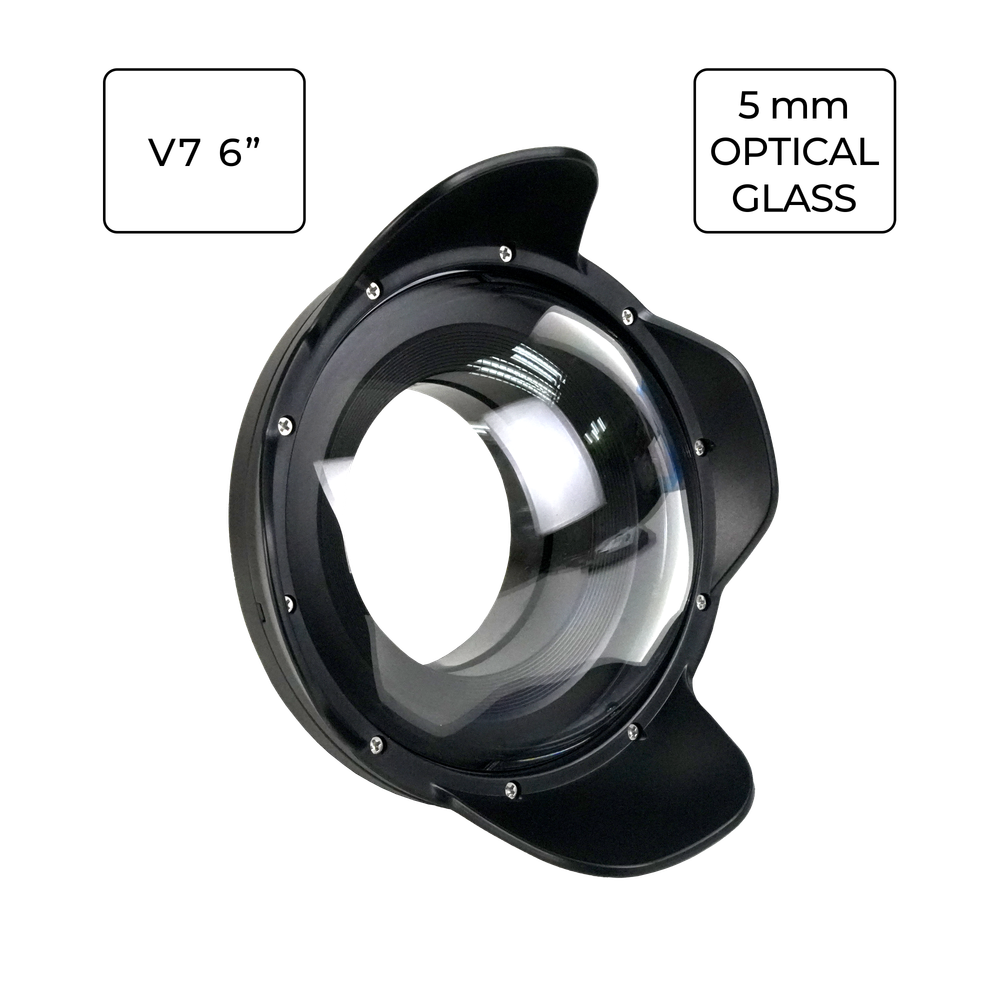

- Dome Lens Shade
FAQ
Rated for depths of up to 40 meters (130 feet).
This dome uses a 90mm (3.54'') bayonet mount via the V7 extension adapter ring. It is compatible with most Salted Line / Sea Frogs housings, excluding A6xxx and RX1xx series models.
Yes — this port includes its 37mm extension adapter ring.
Acrylic domes give excellent image quality in most conditions and are lighter, more affordable and repairable — light scratches can be polished out. Optical glass is slightly sharper in demanding conditions and far more scratch-resistant, but it cannot be repaired once it is damaged.

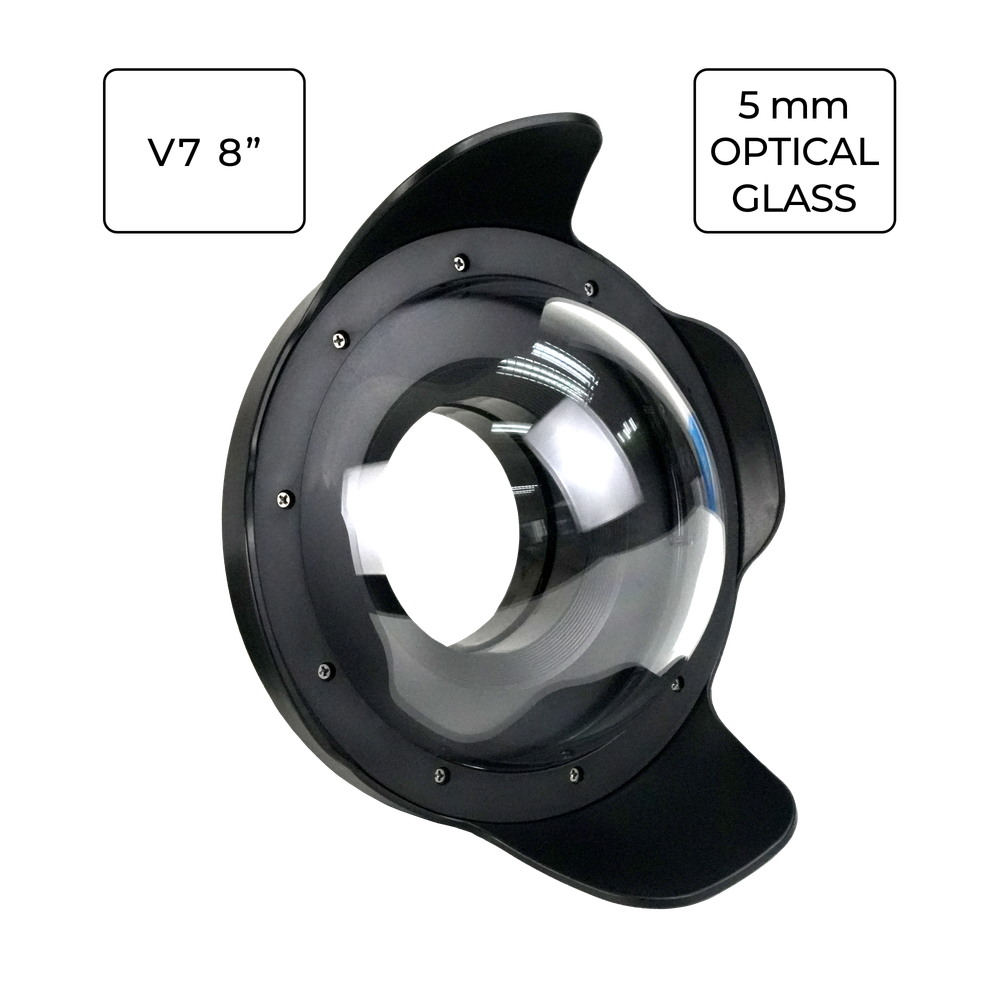

The 6″ dome delivers excellent image quality in most conditions while staying compact and travel-friendly, which makes it the usual choice. The 8″ dome gives slightly better edge sharpness and a cleaner over-under split shot, at the cost of size, weight and price.

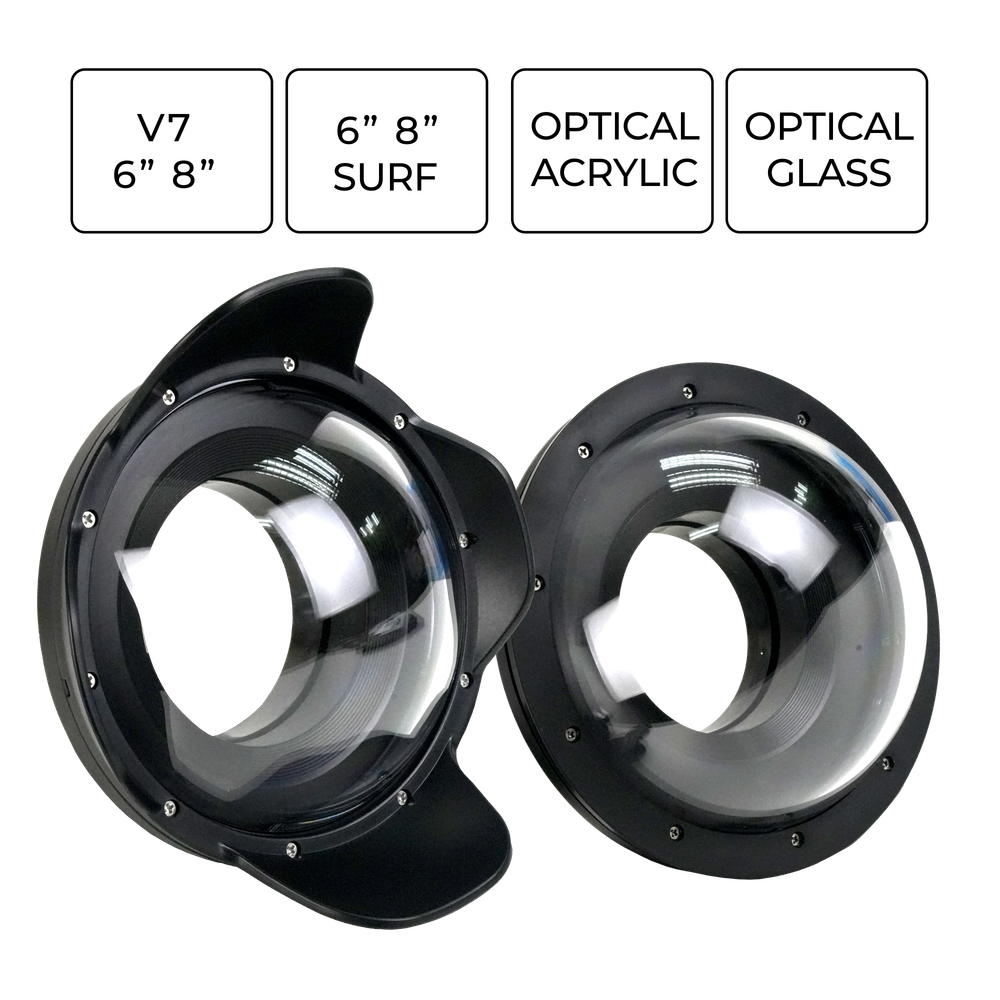

Optically they are the same dome. The standard carries a petal lens shade, which keeps stray light off the dome and gives the rim some protection — the usual choice for diving. The Surf Edition leaves the shade off: there is less for moving water to push against, so the rig is easier to hold steady in the surf zone and there is nothing to catch when you punch through a wave.
Specification
Bayonet
- 90mm (3.54'')
Materials
- Acrylic
Dimensions
- Width185mm (7.28'')
- Height205mm (8.07'')
- Length87mm (3.43'')
- Weight±470g (1.036lb)
Compatible Lenses
Sony Lenses:
- Sony E 18-135mm F3.5-5.6 OSS (autofocus, manual zoom gear available) Optimal working range 18mm to 35mm. Beyond 35mm, you may encounter focusing difficulties and softness in the corners.
- Sony FE 14mm F1.8 GM (autofocus, manual focus gear available)
- Sony FE 28-60 F4-5.6 (autofocus, manual zoom gear available)
- Sony FE 28mm F2 + Fisheye Converter SEL057FEC (autofocus only) Focus Gear not Available
- Sony FE 28mm F2 + Ultra Wide Converter SEL075UWC (autofocus only) Focus Gear not Available
- Sony FE PZ 16-35mm F4 G (autofocus, manual zoom gear available) Zoom gears are not available for the Sony FX3/FX30 and ZV‑E1/ZV‑E10 models that rely on in‑camera zoom control.
Sigma Lenses:
- Sigma 18-50mm F2.8 DC DN E-Mount (autofocus, manual zoom gear available)
Canon Lenses:
- Canon EF 8-15mm F4L Fisheye USM + EF to FE-Mount Adapter (autofocus only) Zoom Gear not Available
Samyang Lenses:
- Samyang AF 14mm F2.8 FE E-Mount (autofocus only) Focus Gear not Available
Tamron Lenses:
- Tamron 11-20mm F2.8 Di III RXD E-Mount (autofocus, manual zoom gear available)
Compatible Housings
Sony Housings:
- Sea Frogs CH A6600
- Salted Line CH A6700
- Sea Frogs CH A6700
- Salted Line CH A1
- Sea Frogs CH A1
- Sea Frogs CH A7C
- Sea Frogs CH A7SII/A7RII/A7II
- Sea Frogs CH A7CII/A7CR
- Salted Line CH A7III/A7RIII
- Sea Frogs CH A7RIII
- Salted Line CH A7SIII
- Sea Frogs CH A7SIII
- Salted Line CH A7IV
- Salted Line CH A7IV GEN2
- Sea Frogs CH A7IV
- Sea Frogs CH A7IV NG
- Sea Frogs CH A7RIV
- Sea Frogs CH A7RV
- Salted Line CH A7RV/A7V
- Salted Line CH A9
- Sea Frogs CH A9
- Sea Frogs CH A9II
- Sea Frogs CH FX3
- Sea Frogs CH FX30
- Salted Line CH FX3/FX30
- Sea Frogs CH ZVE1
- Sea Frogs CH ZVE10
Package Includes
- Sea Frogs V7 6'' Acrylic Dome Ports for Underwater Camera Housings ×1
- Spare O-ring ×1
- Silicone grease (5 ml) ×1
- Dome Port Cap (back) ×1
