Salted Line CH A7RV/A7V Underwater Housing for Sony A7RV/A7V Cameras | 6'' V1 Dome Port | Acrylic | Black
90mm Bayonet|40m/130ft|M33 Bulkhead|6'' V1 Dome Port|Acrylic|Black

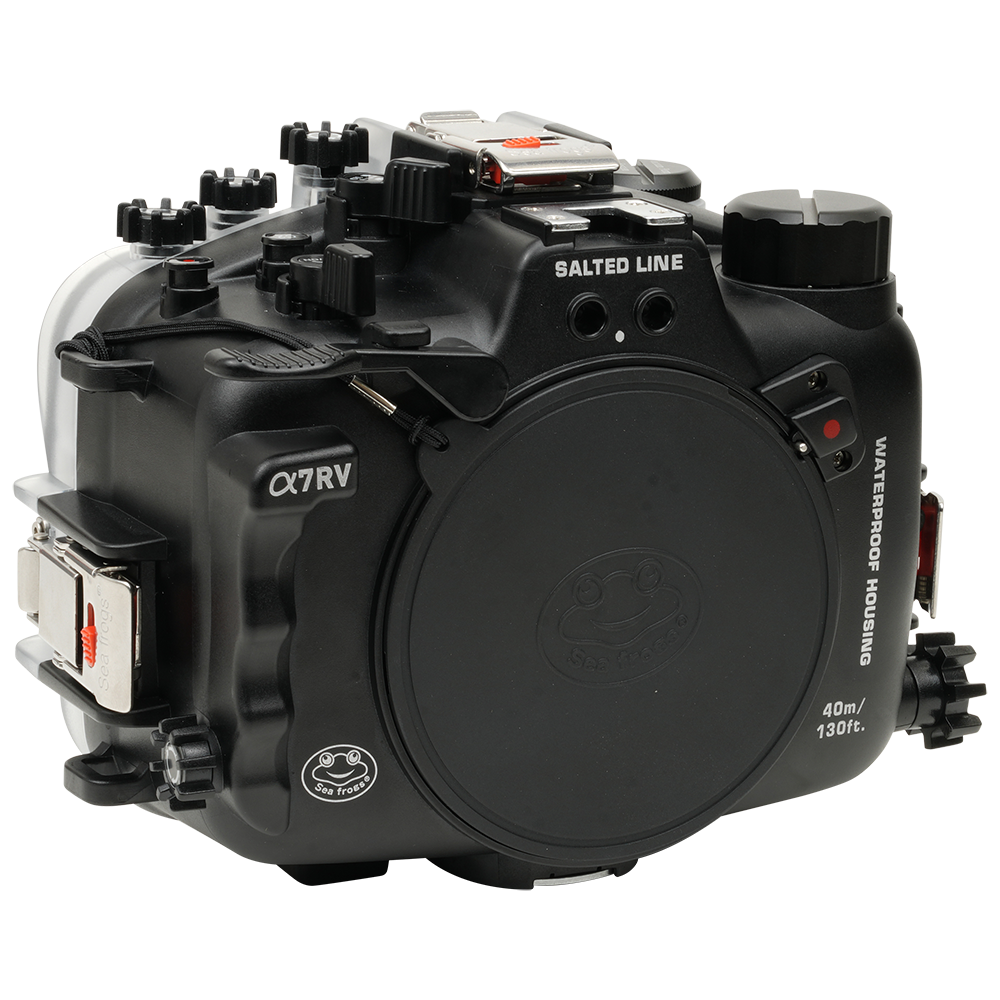

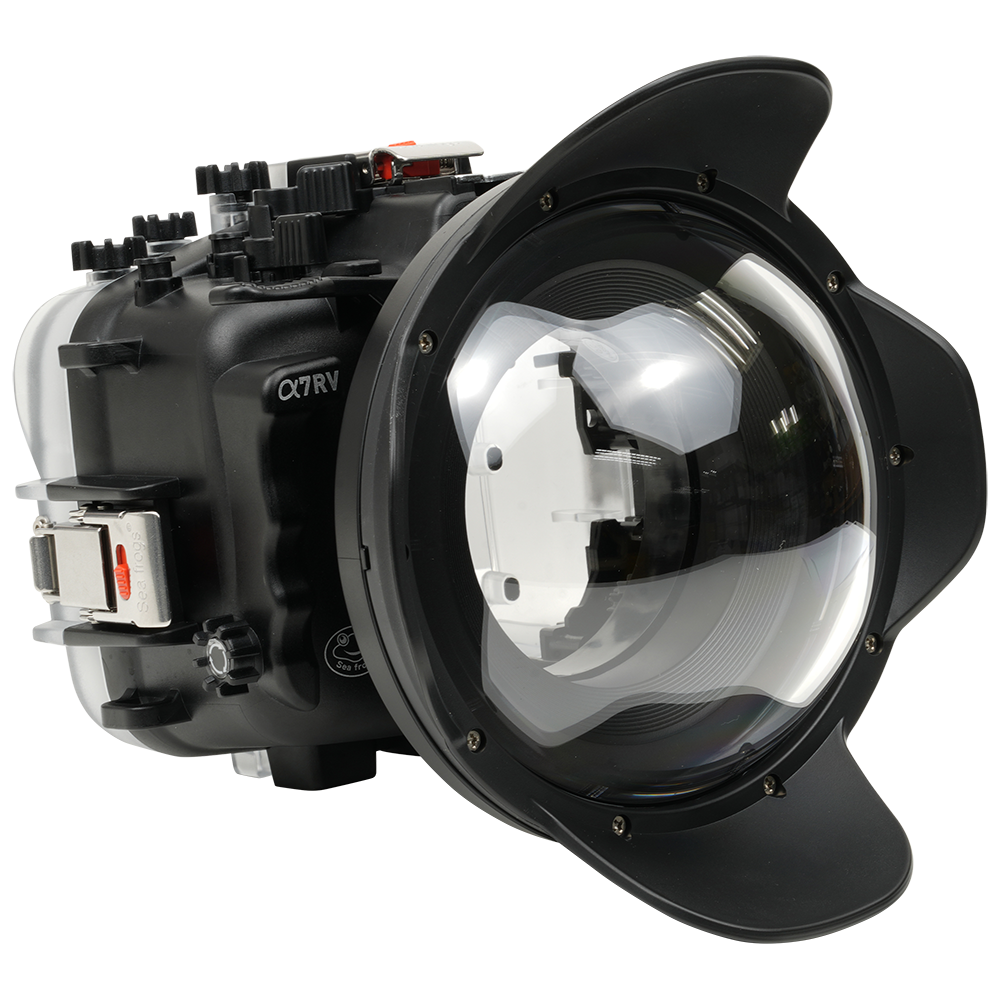

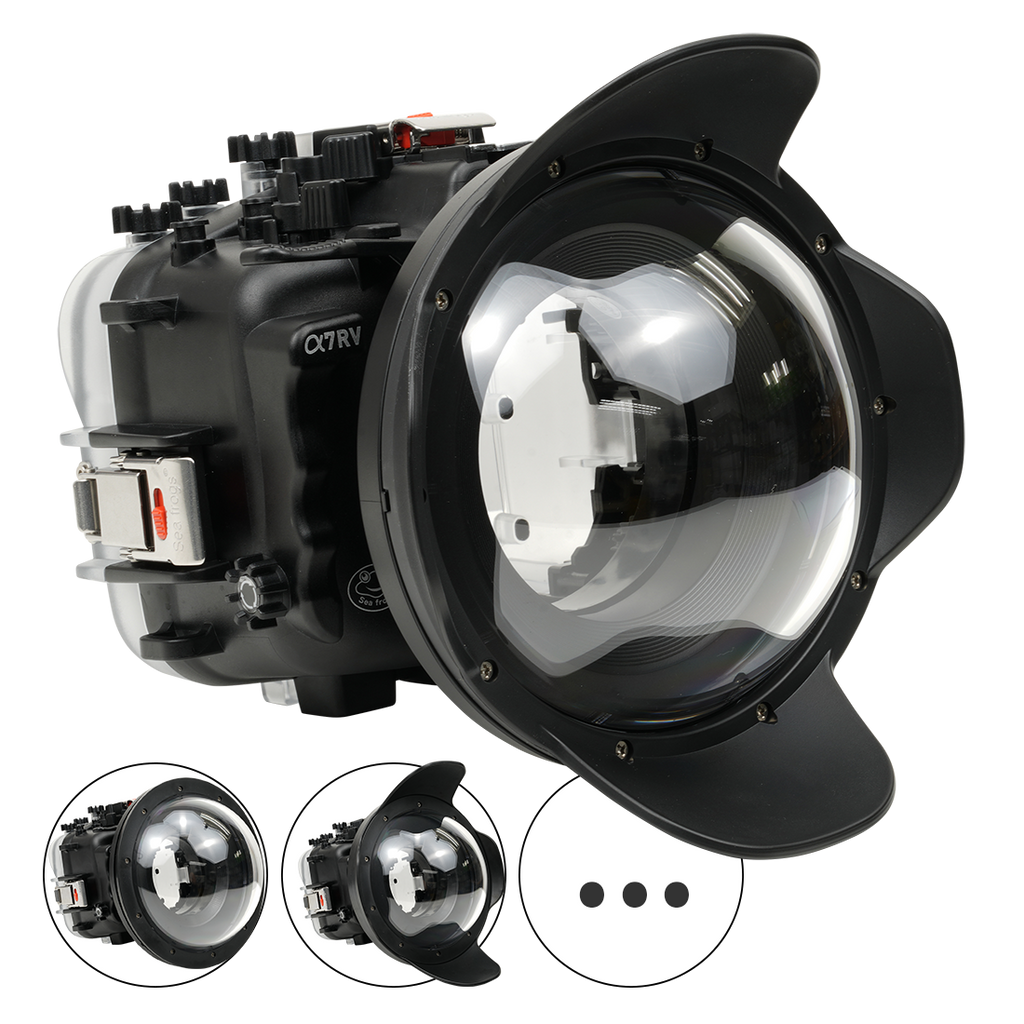

The Salted Line A7RV/A7V Housing, bundled with a 6-inch Optically Correct Acrylic V1 Dome Port and a compact 23mm extension adapter ring, supports a range of wide-angle zoom and prime E-mount lenses.
This housing provides full control of all camera functions (excluding the touchscreen) and is equipped with a standard bayonet mount featuring a 90mm diameter, compatible with a wide range of Sea Frogs dry flat and dome ports (except those made for A6xxx and RX1xx camera housings).
The control buttons feature a 50% increase in spring stiffness, providing superior tactile feedback for precise control. Whether you're into underwater or surf photography, this housing offers enhanced durability, functionality and precision, making it the ideal choice for users seeking to capture stunning images in challenging environments.
Highlights
The Salted Line A7RV/A7V version features several premium upgrades, including:
- Triple-sided metal latch locking system
- Integrated M33 threaded bulkhead interface

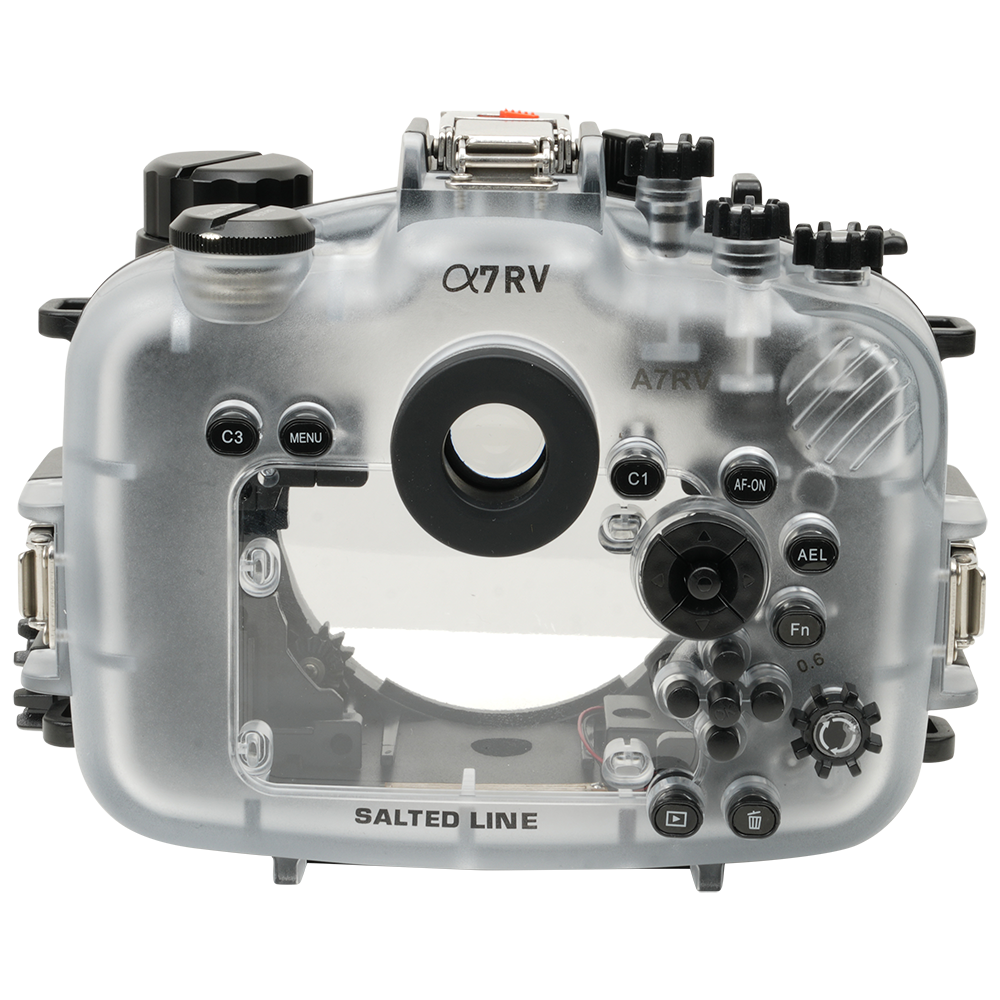

- A larger LCD screen window enhances visibility.
- Compatibility with a detachable 2-stage shutter grip trigger.
- Enhanced resistance to hydrodynamic shock for use in harsh conditions.
- The control buttons have a 70% increase in spring stiffness, offering better tactile feedback for precise control.
- Please note: To connect a shutter grip, use a USB-C cable for the Sony A7V and a Micro-USB cable for the A7RV.
- Please note: The upgraded housing version does not include a dedicated sync cable bulkhead. However, it can be purchased separately and installed via an M33 bulkhead interface.
Key Features
- Detachable shutter grip with two-stage trigger (sold separately)

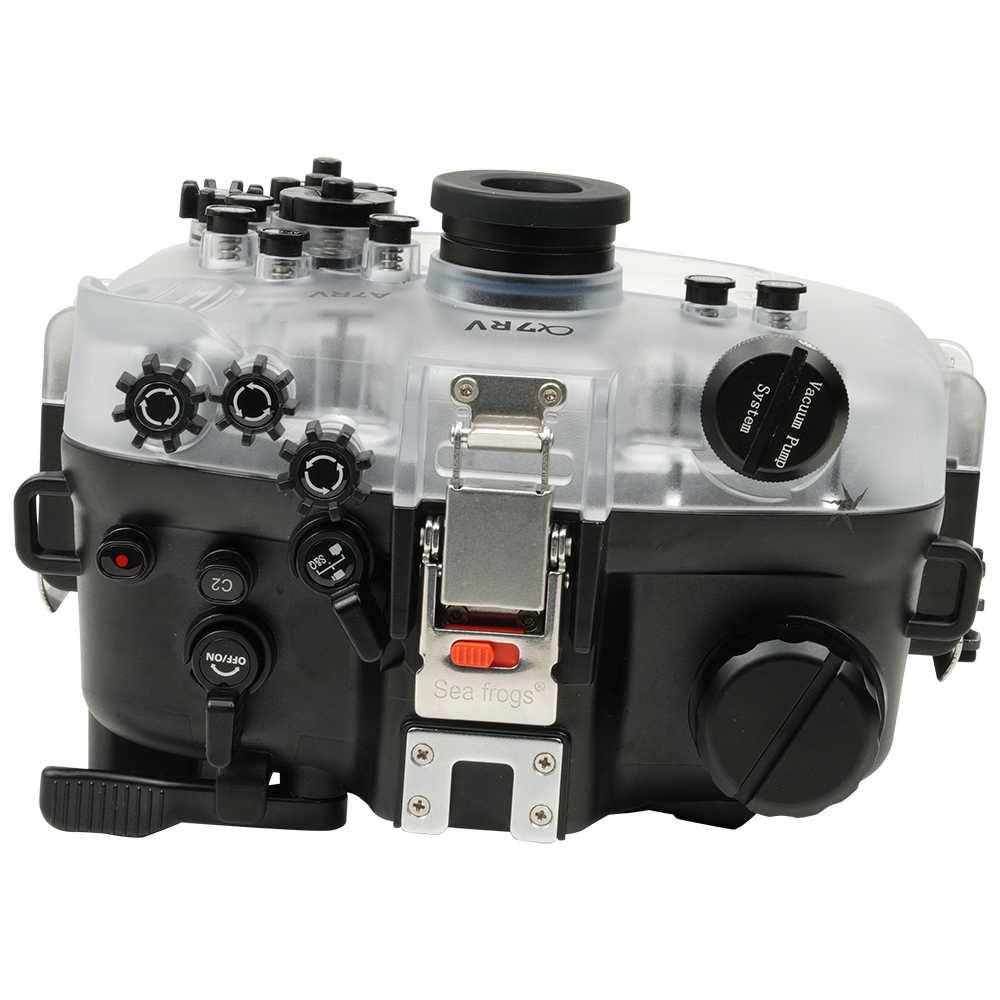

- Vacuum Check System port
- Inbuilt leak detection sensor
- Interchangeable port system
- Integrated M33 threaded bulkhead interface
- Dual Fiber-Optic port (Sea&Sea type)

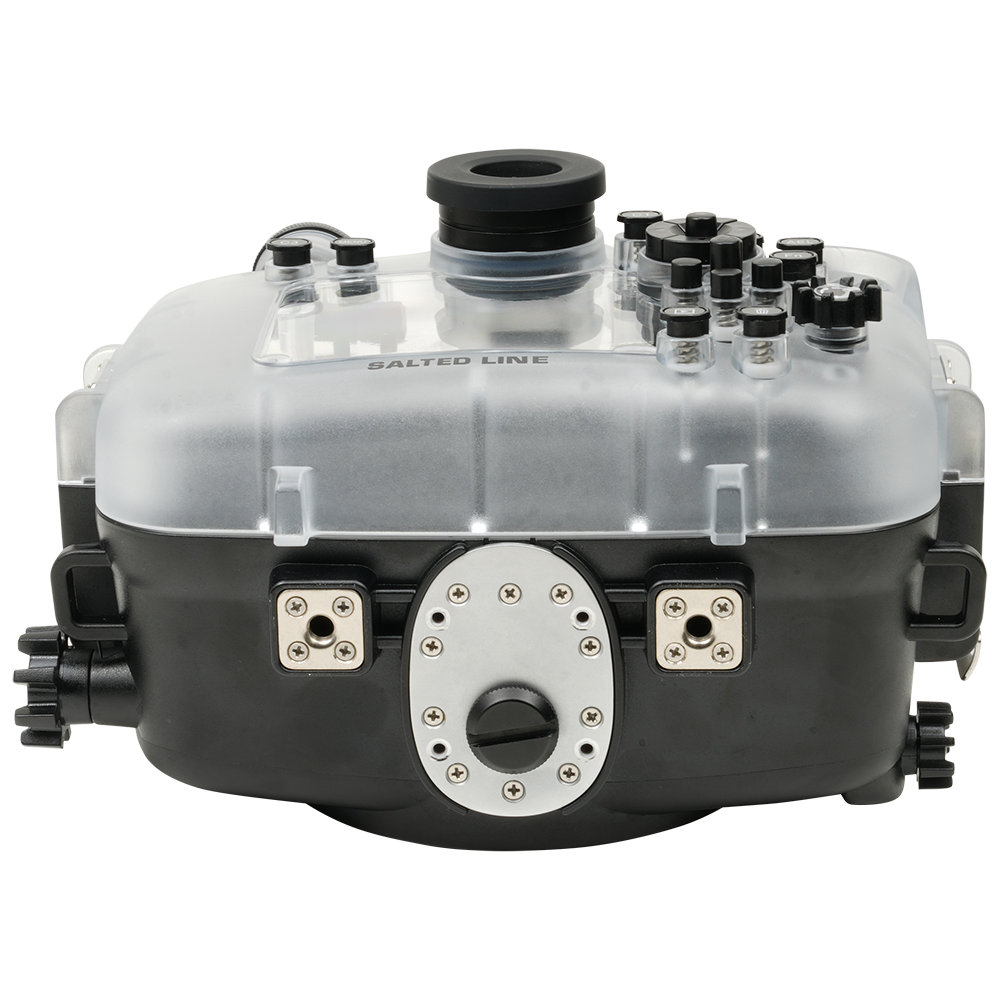

- Two stainless steel mounting plates 1/4" thread
- The reinforced metallic bottom plate
- Triple-sided metal latch locking system
- O-ring sealed buttons with spring
Connect an external strobe with this housing. It will require a fiber-optic cable (purchase here) and a flash trigger (purchase here).
FAQ
The Salted Line housing is rated for depths of up to 40 meters (130 feet), ensuring reliable underwater performance.

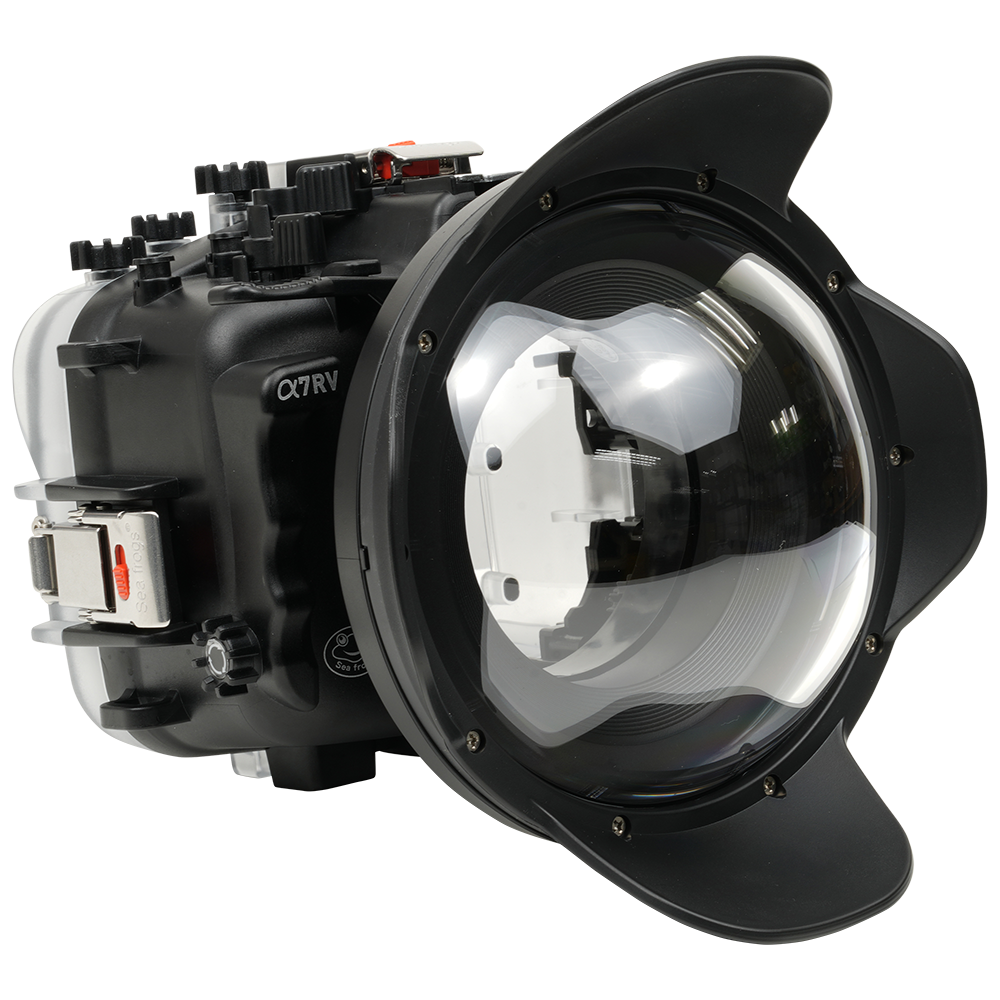

Acrylic ports deliver solid image quality in most scenarios, and they have the advantages of being lighter, more affordable, and easier to repair. Glass dome ports, while offering slightly superior image quality in specific conditions and better scratch resistance, cannot be repaired if scratched.

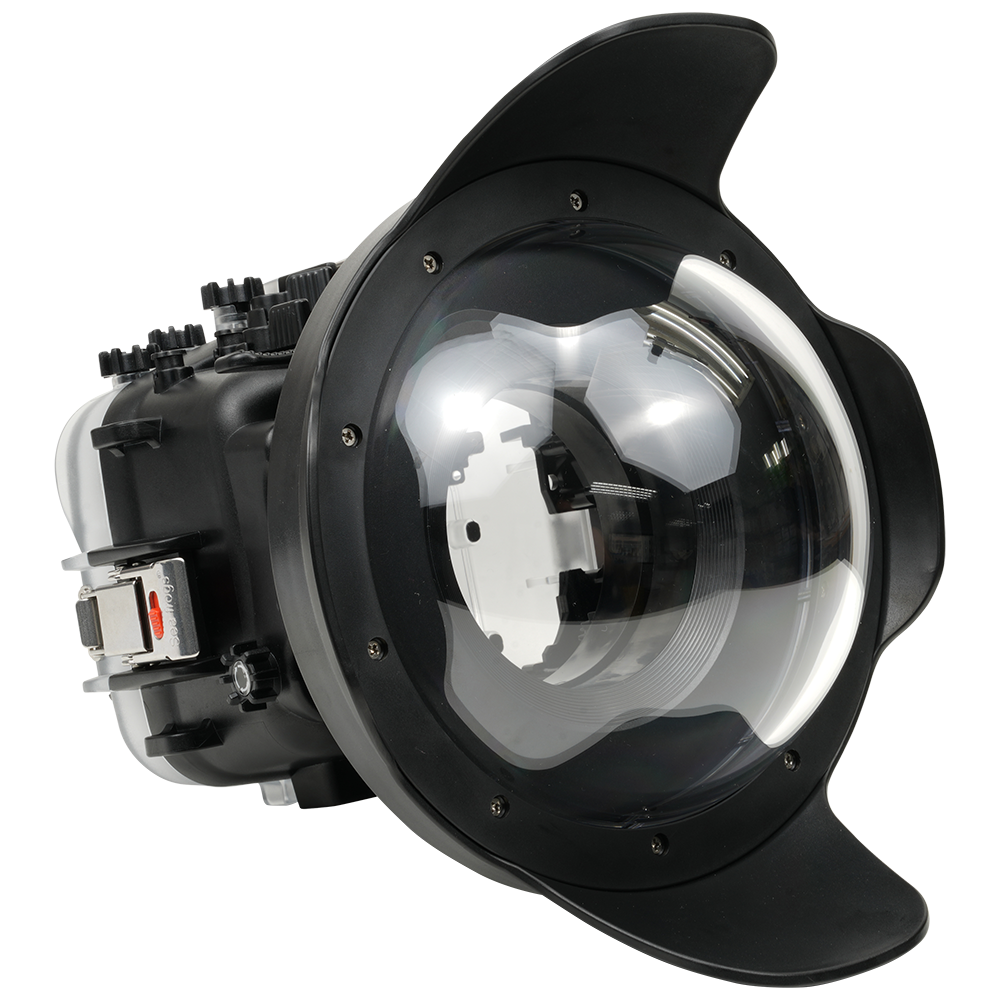

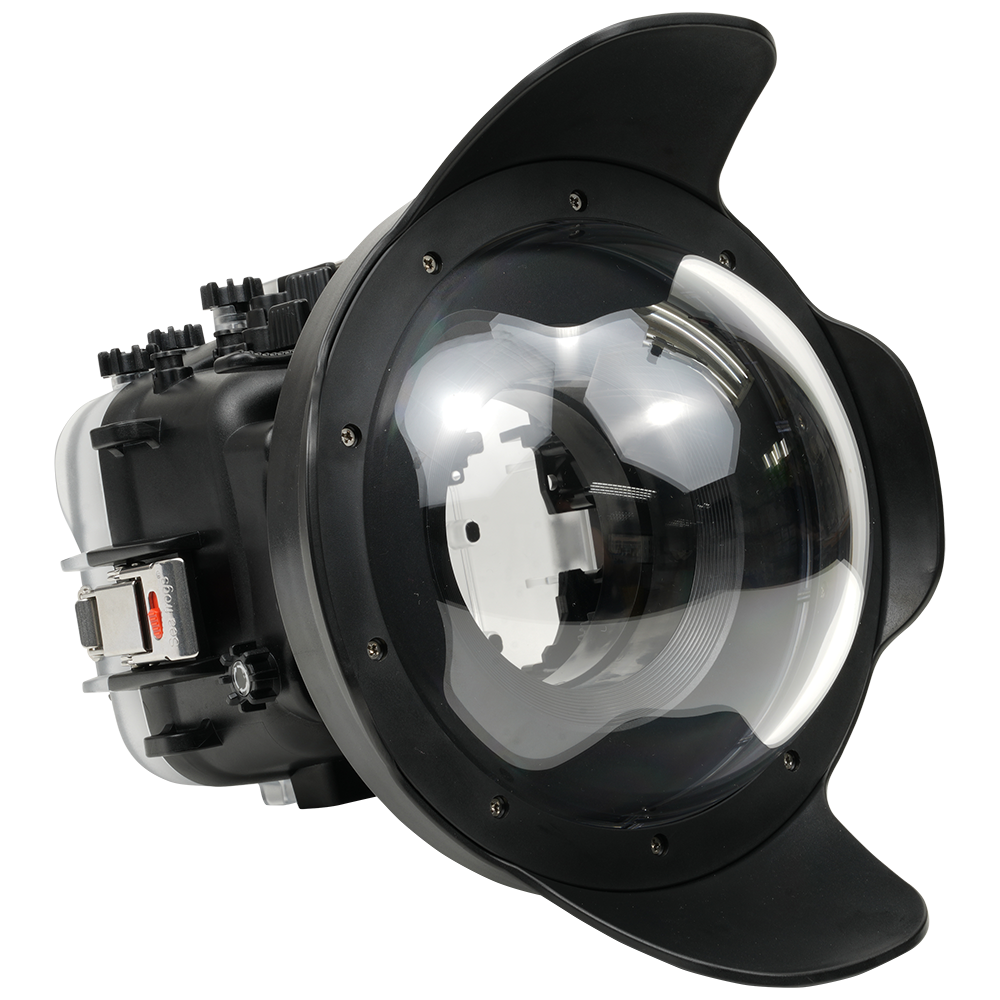

The 6" domes deliver excellent image quality in most shooting conditions while being significantly more compact and travel-friendly, making them the preferred choice for many users. While 8" domes can offer slightly improved edge sharpness, their larger size makes them bulkier and less convenient to transport.

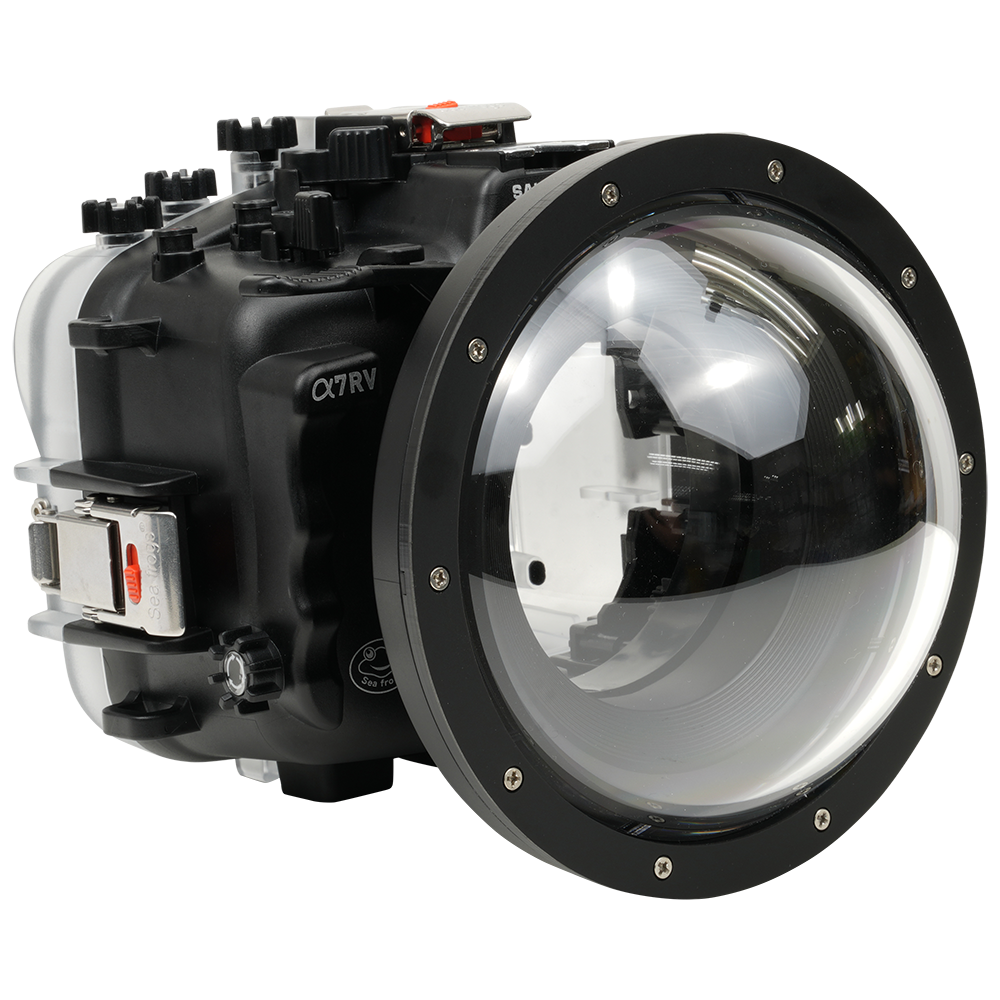

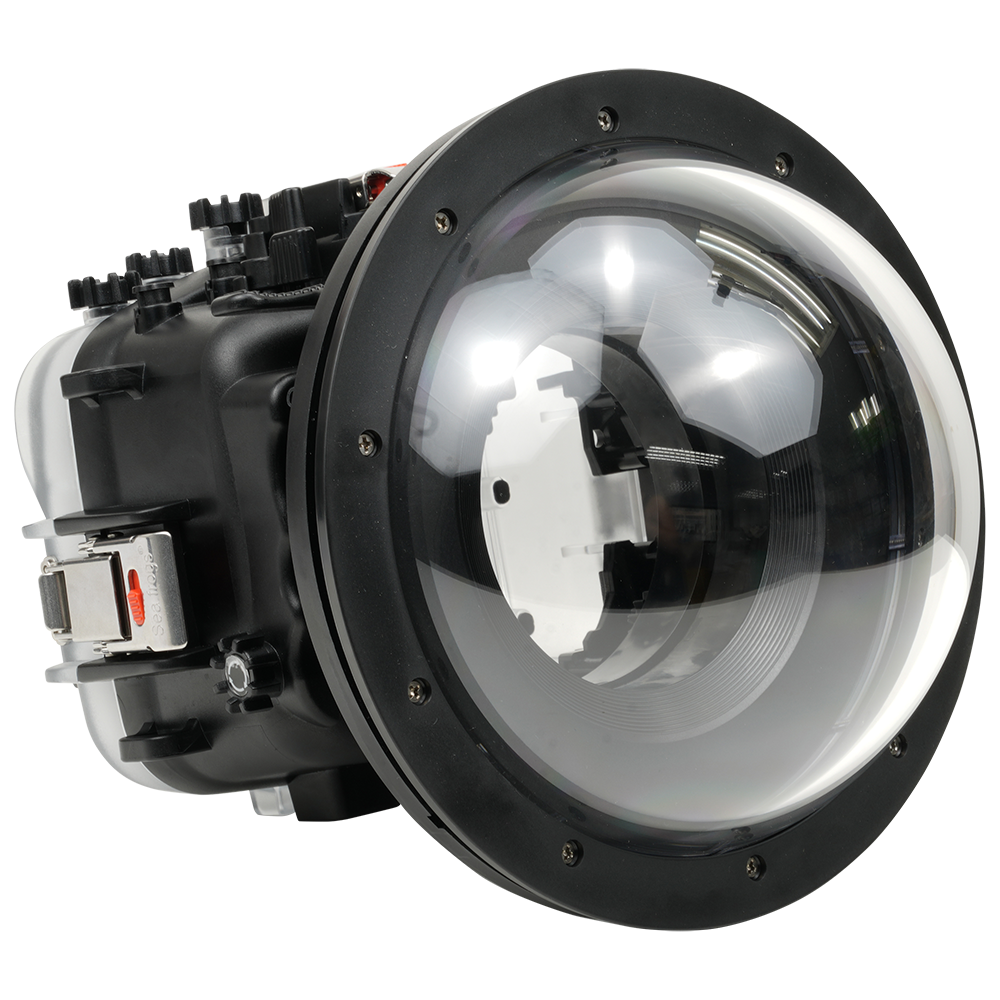

Dome Ports include a lens shade that protects them from accidental contact with objects during use and offers benefits in some shooting conditions. The Surf Edition Dome Ports are designed without a lens shade to minimize drag when shooting in large waves.
The housing uses a 90mm bayonet mount, compatible with all Salted Line / Sea Frogs dome and flat ports for that bayonet size.
No port is included. Ports are sold separately.
Inspect and lubricate the O-ring before every dive. Replace O-rings at least once per year or every 50 dives. Use only Salted Line / Sea Frogs silicone grease — third-party greases may cause leaks.
The A7RV/A7V housing uses a triple-sided metal latch locking system, providing three points of secure closure for added reliability.
Yes. The housing features an integrated M33 threaded HDMI bulkhead interface for use with external underwater monitors or recorders.
To connect a shutter grip to the Sony A7V camera, use a USB-C cable.
To connect a shutter grip to the Sony A7RV camera, use a USB-MICRO cable.
Specification
Bayonet
- Mount90mm (3.54'')
Materials
- Polycarbonate
- ABS Plastic
- Stainless Steel
- EPDM Rubber
Dimensions (body only)
- Width215mm (8.46'')
- Height165mm (6.5'')
- Length140mm (5.51'')
- Weight±1280g (2.82lb)
- Depth rating40m (130ft)
6'' V1 Dome Port
- Length87mm (3.43'')
- Width185mm (7.28'')
- Height205mm (8.07'')
- Weight±470g (1.04lb)
- Depth rating40m (130ft)
Compatible Lenses
Sony Lenses:
- Sony E 10-18mm F4 OSS (autofocus, manual zoom gear available)
- Sony E 10-20mm F4 PZ G (autofocus only) Zoom gears are not available.
- Sony E 11 mm f1.8 (autofocus only) Focus Gear not Available
- Sony E 20mm F2.8 (autofocus only) Focus Gear not Available
- Sony E 20mm F2.8 + Ultra Wide Converter VLC-ECU2 (autofocus only) Focus Gear not Available
- Sony E 24mm F1.8 ZA (autofocus only) Focus Gear not Available
- Sony E 50mm F1.8 OSS (autofocus only) Focus Gear not Available
- Sony E16-50 f3.5-5.6 PZ OSS (autofocus, manual zoom gear available)
- Sony E16-50 f3.5-5.6 PZ OSS II (autofocus, manual zoom gear available)
- Sony FE 16mm F1.8 GM (autofocus, manual focus gear available)
- Sony FE 20mm F1.8G (autofocus only) Focus Gear not Available
- Sony FE 28mm F2 (autofocus only) Focus Gear not Available
Sigma Lenses:
- Sigma 10-18mm F2.8 DC DN E-Mount (autofocus, manual zoom gear available)
- Sigma 16mm F1.4 DC DN E-Mount (autofocus only) Focus Gear not Available
- Sigma 19mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available
- Sigma 30mm F1.4 DC DN | C E-Mount (autofocus only) Focus Gear not Available
- Sigma 60mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available
Samyang Lenses:
- Samyang 12mm F2.0 AF E-Mount (autofocus only) Focus Gear not Available
- Samyang AF 14mm F2.8 FE E-Mount (autofocus only) Focus Gear not Available
Compatible Cameras
Sony Cameras:
- A7RV
- A7V
Package Includes
- Salted Line CH A7RV/A7V Underwater Housing for Sony A7RV/A7V Cameras | 6'' V1 Dome Port | Acrylic | Black ×1
- Port Cap (Back) ×1
- Spare O-ring Set ×1
- Silicone grease (5 ml) ×1
- Housing body cap ×1
Please Note: Camera and lens not included with the housing.
Disclaimer:
Every effort has been made to ensure that the descriptions and images provided are accurate and up-to-date. However, occasional errors may occur, and product features, specifications, or appearances may change without notice. We recommend verifying any details that are critical to your purchasing decision.
