Sea Frogs V10 Dome Ports with 61mm Extension Ring

Not sure this port fits your lens? Check it by camera and lens in the port finder.

Artikelnummer: SFDP90A6V10

€220.00

Die EU-Mehrwertsteuer wird auf der Checkout-Seite basierend auf dem Zielland der Bestellung berechnet.

Für Länder außerhalb der EU erheben wir keine Mehrwertsteuer oder zusätzliche Gebühren.

Dome Port Size
Dome Port Material
Edition
Ocean's Window

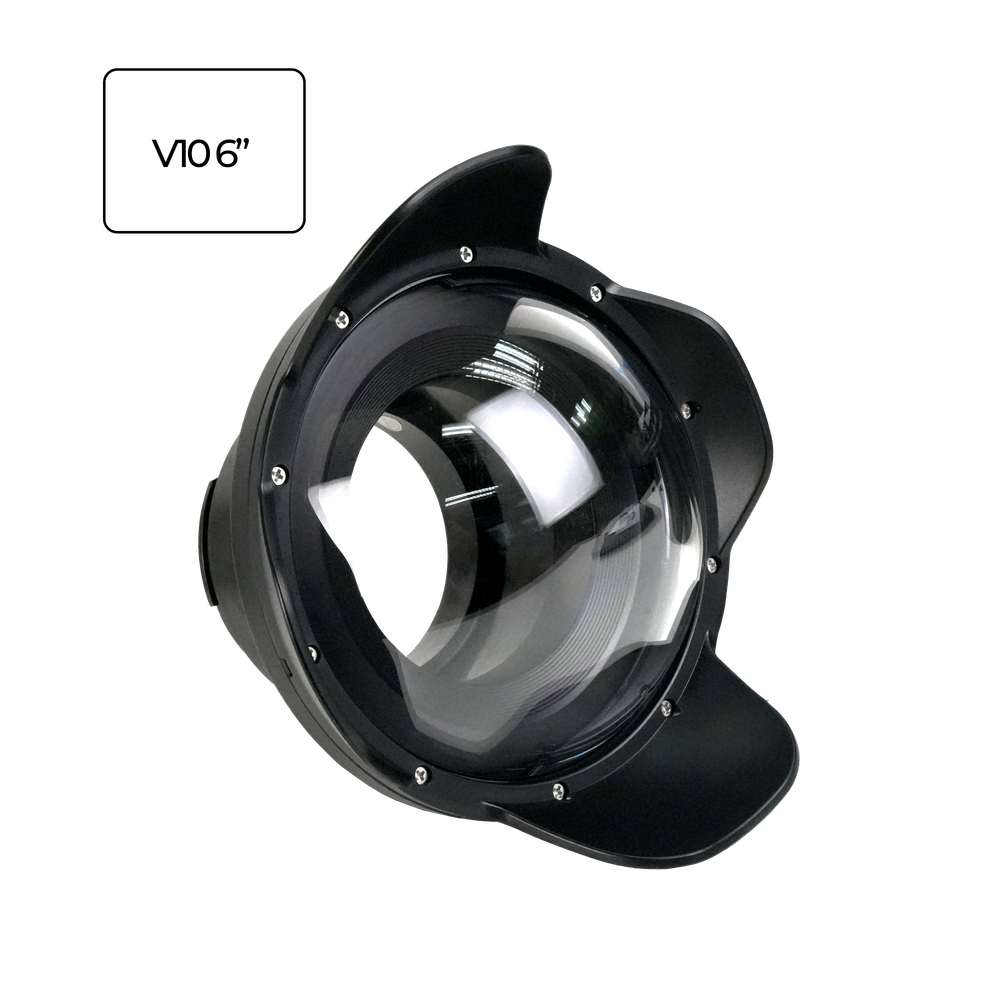

Sea Frogs V10 6'' Acrylic Dome Ports for Underwater Camera Housings

6"|Acrylic|V10 Dome Port|90mm Bayonet

The Sea Frogs 6" Acrylic Dome Port V10 comes with its 61mm (2.4'') extension adapter ring. Designed with a 90mm (3.54'') bayonet mount. It is compatible with most Sea Frogs/Salted Line underwater housings, excluding A6xxx and RX1xx series models.

Key Features

  • Standard Sea Frogs 90mm Bayonet Mount
  • 61mm Extension Adapter Ring
  • Dome Diameter 152.4mm (6″)
  • Dome Lens Shade

FAQ

How deep can I use this dome port?

Rated for depths of up to 40 meters (130 feet).

Is it compatible with my Sea Frogs housing?

This dome uses a 90mm (3.54'') bayonet mount via the V10 extension adapter ring. It is compatible with most Salted Line / Sea Frogs housings, excluding A6xxx and RX1xx series models.

Does it come with an extension ring?

Yes — this port includes its 61mm extension adapter ring.

Acrylic or optical glass — which should I choose?

Acrylic domes give excellent image quality in most conditions and are lighter, more affordable and repairable — light scratches can be polished out. Optical glass is slightly sharper in demanding conditions and far more scratch-resistant, but it cannot be repaired once it is damaged.

6″ or 8″ — which should I choose?

The 6″ dome delivers excellent image quality in most conditions while staying compact and travel-friendly, which makes it the usual choice. The 8″ dome gives slightly better edge sharpness and a cleaner over-under split shot, at the cost of size, weight and price.

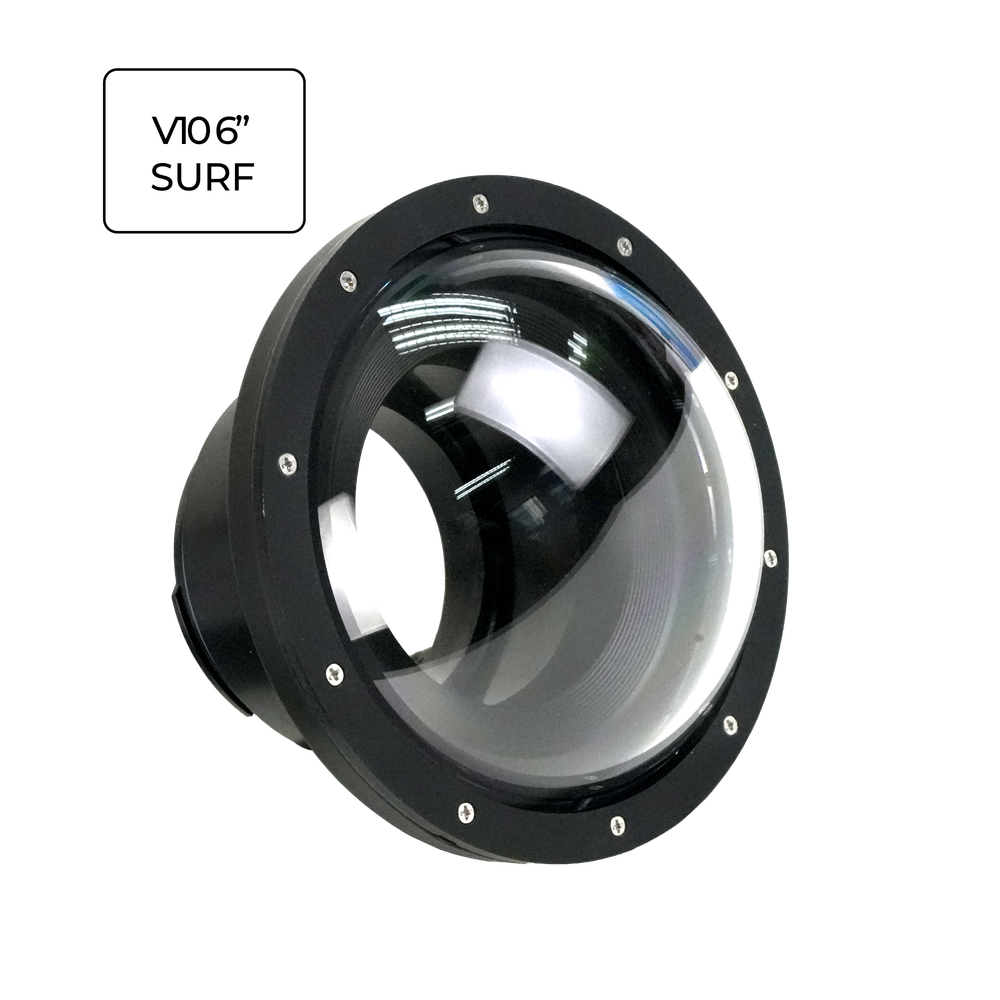

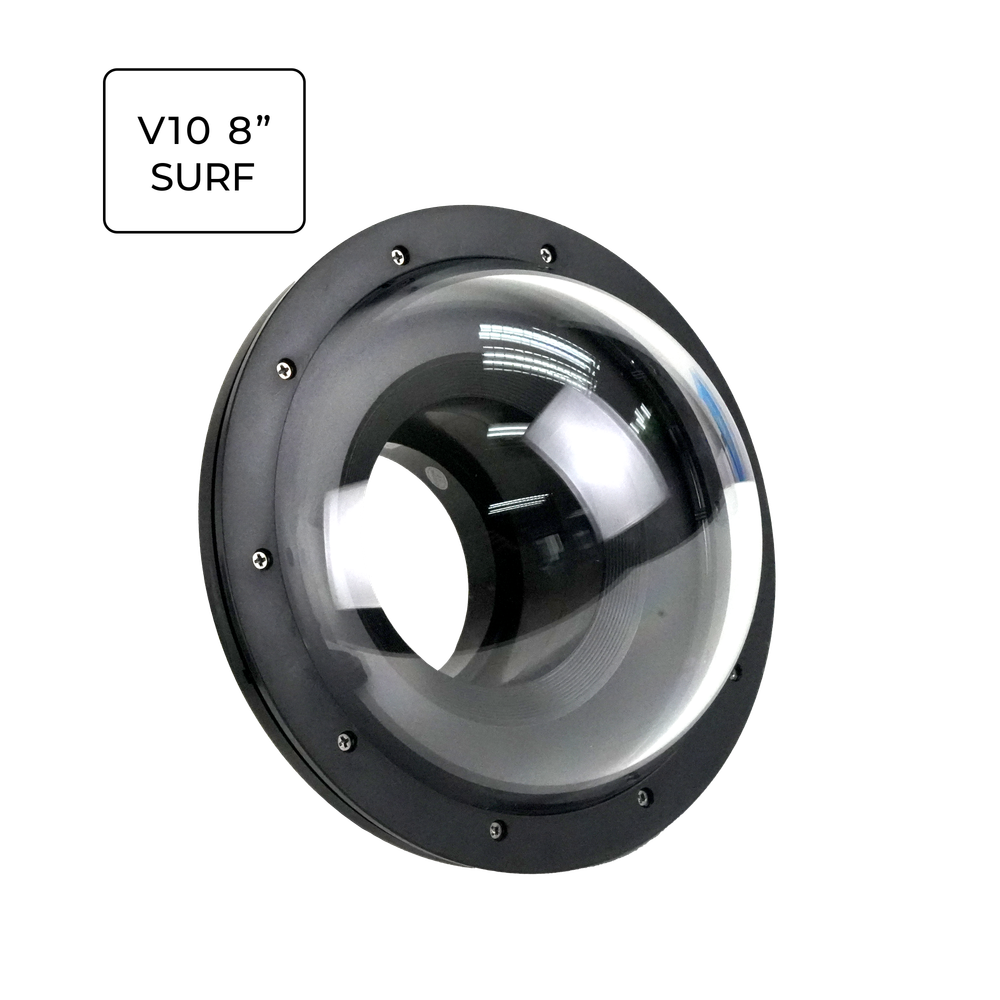

Standard or Surf Edition — which should I choose?

Optically they are the same dome. The standard carries a petal lens shade, which keeps stray light off the dome and gives the rim some protection — the usual choice for diving. The Surf Edition leaves the shade off: there is less for moving water to push against, so the rig is easier to hold steady in the surf zone and there is nothing to catch when you punch through a wave.

Specification

Bayonet

  • 90mm (3.54'')

Materials

  • Acrylic

Dimensions

  • Width185mm (7.28'')
  • Height205mm (8.07'')
  • Length87mm (3.43'')
  • Weight±470g (1.036lb)

Compatible Lenses

Sony Lenses:

  • Sony FE 12-24mm F4 G (autofocus, manual zoom gear available)
  • Sony FE 16-35mm F2.8 GM II (autofocus, manual zoom gear available)
  • Sony FE 16-35mm F4 ZA OSS (autofocus, manual zoom gear available)
  • Sony FE 24-70mm F4 ZA OSS (autofocus, manual zoom gear available) Optimal working range 24mm to 35mm. Beyond 35mm, you may encounter focusing difficulties and softness in the corners.
  • Sony FE 24mm F1.4 GM (autofocus only) Focus Gear not Available
  • Sony FE 28-70mm F3.5-5.6 OSS (autofocus, manual zoom gear available) Optimal working range 28mm to 35mm
  • Sony FE 28mm F2 + Ultra Wide Converter SEL075UWC (autofocus only) Focus Gear not Available
  • Sony FE 35mm F1.4 ZA Distagon T* (autofocus only) Focus Gear not Available

Sigma Lenses:

Canon Lenses:

Fujifilm Lenses:

Tamron Lenses:

  • Tamron 17-28mm F2.8 Di III RXD E-Mount (autofocus, manual zoom gear available)
  • Tamron 20-40mm F/2.8 Di III VXD E-Mount (autofocus, manual zoom gear available)
  • Tamron 28-200mm F2.8-5.6 Di III RXD E-Mount (autofocus only) Working only at 28mm. Zoom Gear not Available
  • Tamron 28-75mm F2.8 Di III RXD E-Mount (autofocus only) Working only at 28mm. Zoom Gear not Available
  • Tamron 28-75mm F2.8 Di III VXD G2 E-Mount (autofocus, manual zoom gear available) Working range 28mm to 50mm

Compatible Housings

Sony Housings:

Canon Housings:

Fujifilm Housings:

Package Includes

  • Sea Frogs V10 6'' Acrylic Dome Ports for Underwater Camera Housings ×1
  • Spare O-ring ×1
  • Silicone grease (5 ml) ×1
  • Dome Port Cap (back) ×1
