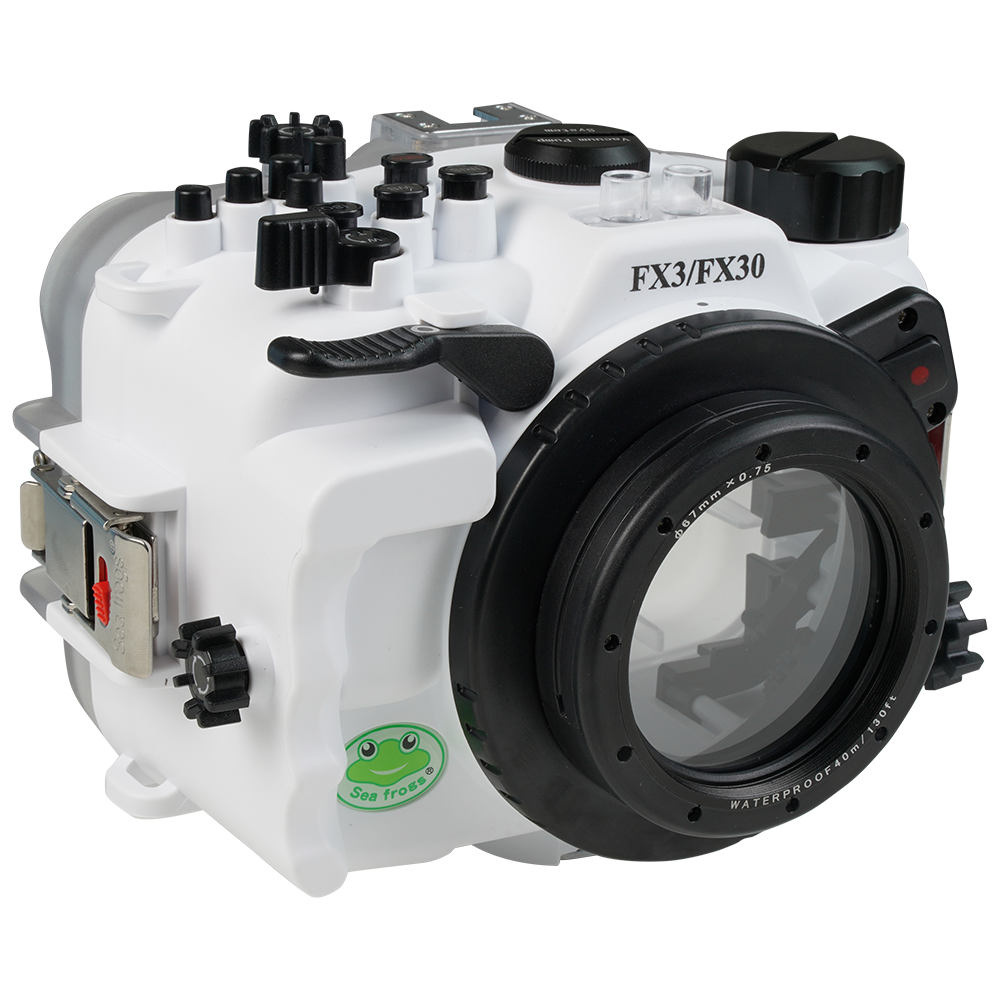

Salted Line CH FX3/FX30 Underwater Housing for Sony FX3/FX30 Cameras | 67mm Thread Super Short Flat Port | Optical Glass | White
90mm Bayonet|40m/130ft|M33 Bulkhead|67mm Thread Super Short Flat Port|Optical Glass|White
The Salted Line FX3/FX30 Housing with a 67mm-thread Optical Glass Super Short Flat Port bundle enables you to use a Sony FX3/FX30 camera paired with the Sony E 16-50mm f/3.5-5.6 PZ OSS lens, with zoom control managed directly via the camera.
The 67mm thread supports the use of "wet" close-up and wide-angle lenses underwater, enhancing your creative flexibility beneath the surface.
This housing provides full control of all camera functions (excluding touch screen) and is equipped with a standard bayonet mount featuring a 90mm diameter, compatible with a wide range of Sea Frogs dry flat and dome ports (except those made for A6xxx and RX1xx camera housings).
The control buttons feature a 50% increase in spring stiffness, providing superior tactile feedback for precise control. Whether you're into underwater or surf photography, this housing offers enhanced durability, functionality and precision, making it the ideal choice for users seeking to capture stunning images in challenging environments.
Highlights
The Salted Line FX3/FX30 Housing version features several premium upgrades, including:
- HDMI Support:Integrated M33 threaded bulkhead interface for external monitor connection

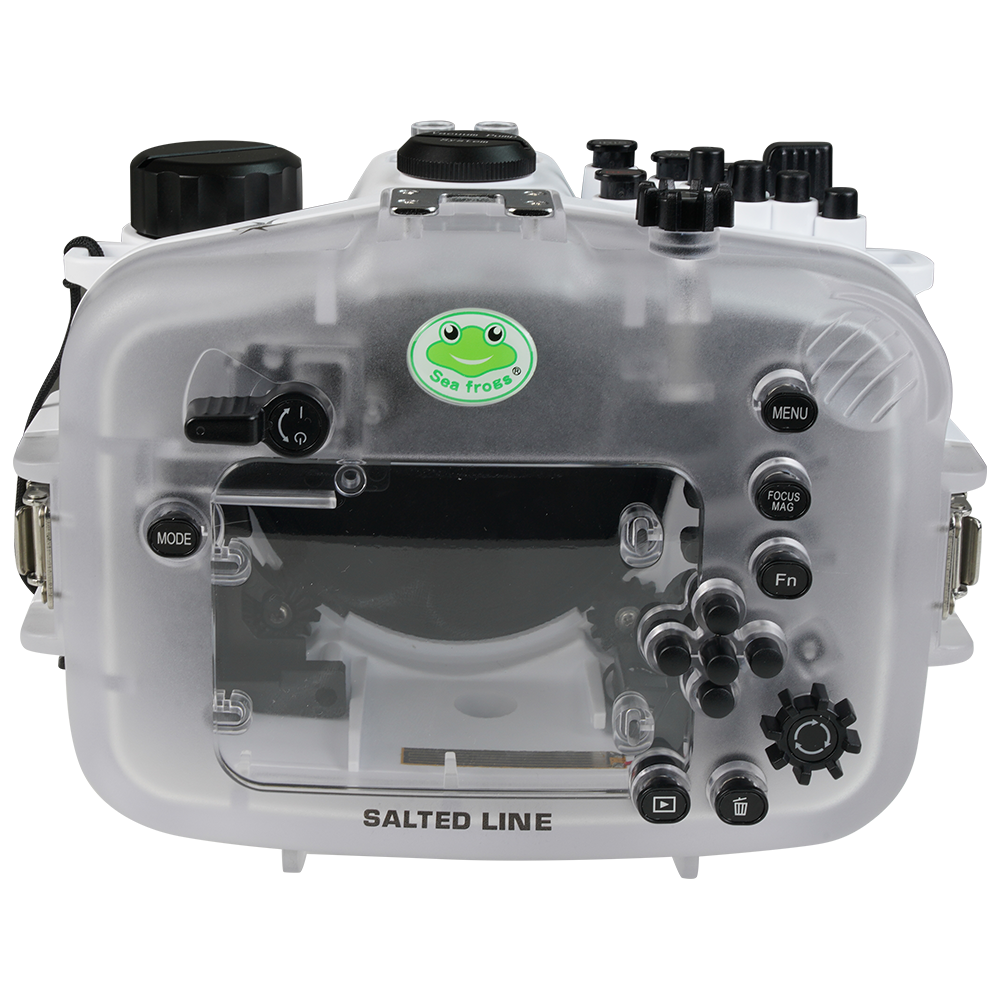

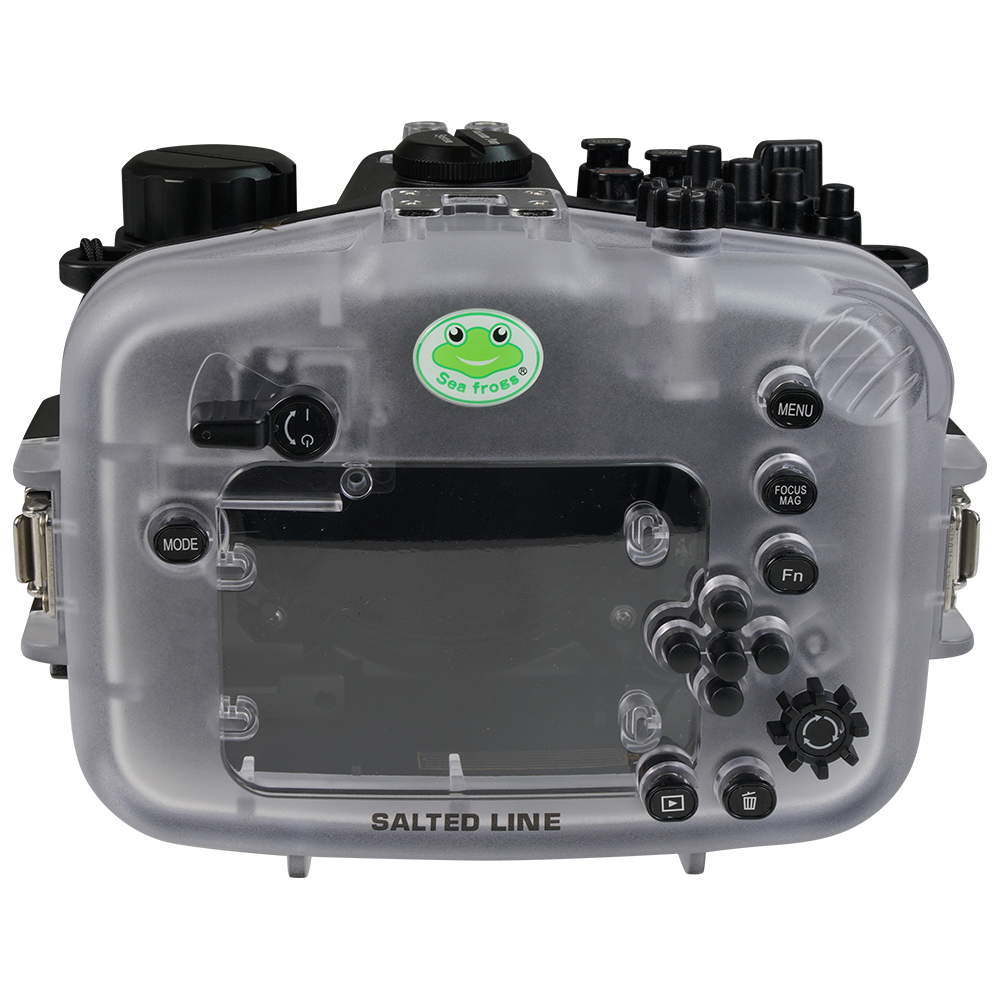

- Improved Visibility:A larger LCD screen window enhances visibility.
- Precision Control:Compatibility with a detachable 2-stage shutter grip trigger.
Key Features

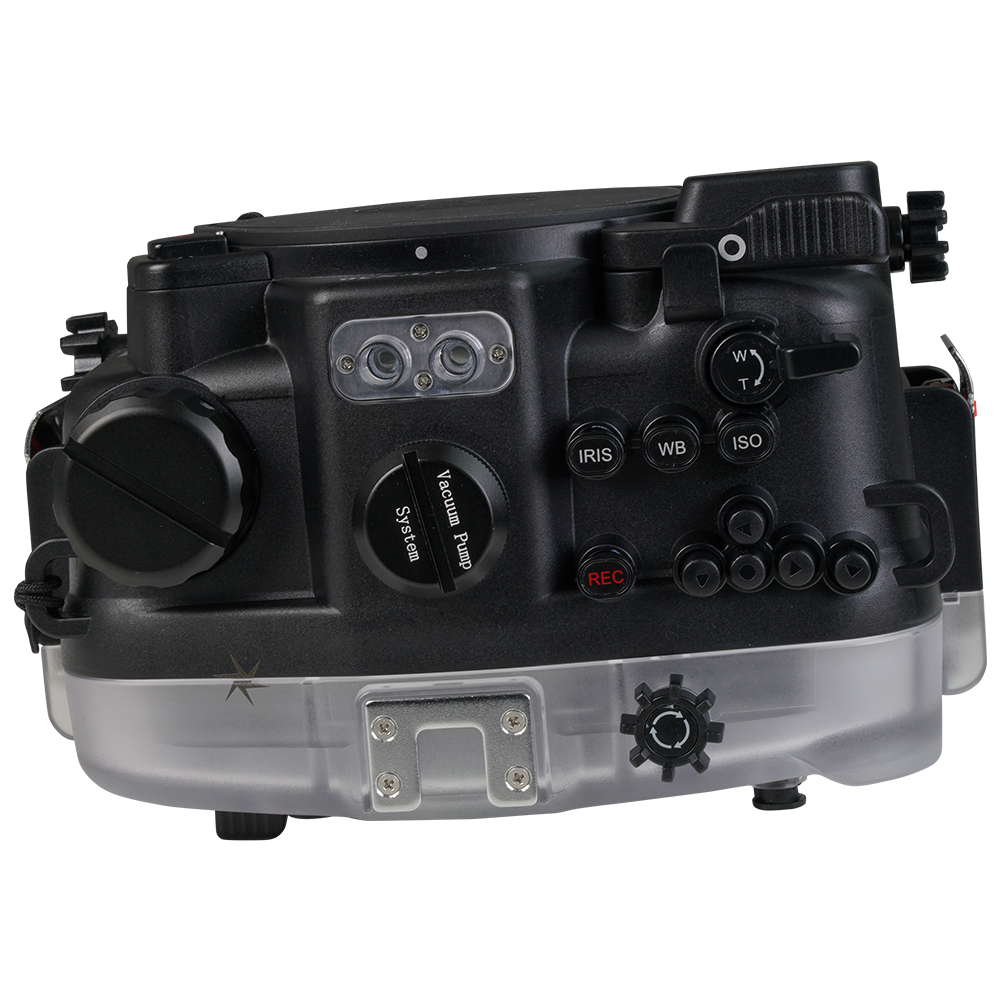

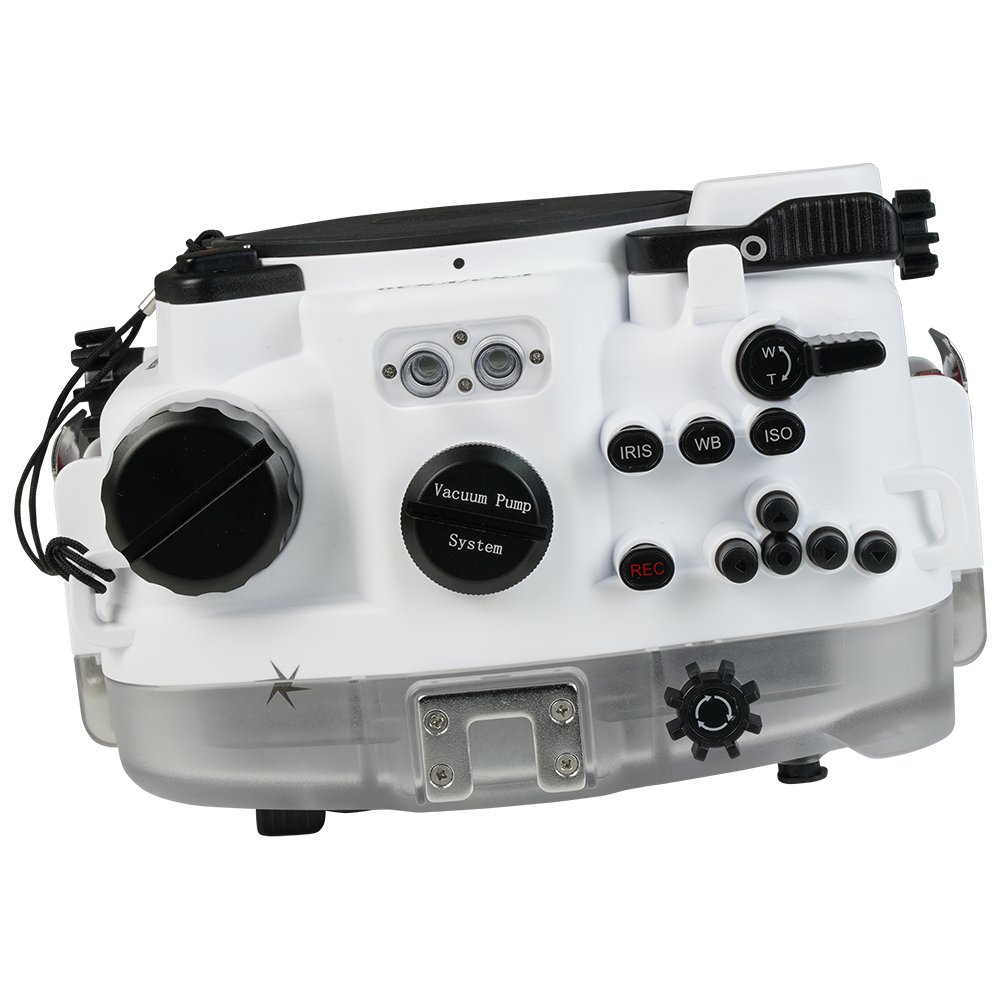

- Vacuum Pump System port
- Inbuilt leak detection sensor
- Interchangeable port system
- Integrated M33 threaded bulkhead interface
- Dual Fiber-Optic port (Sea&Sea type)

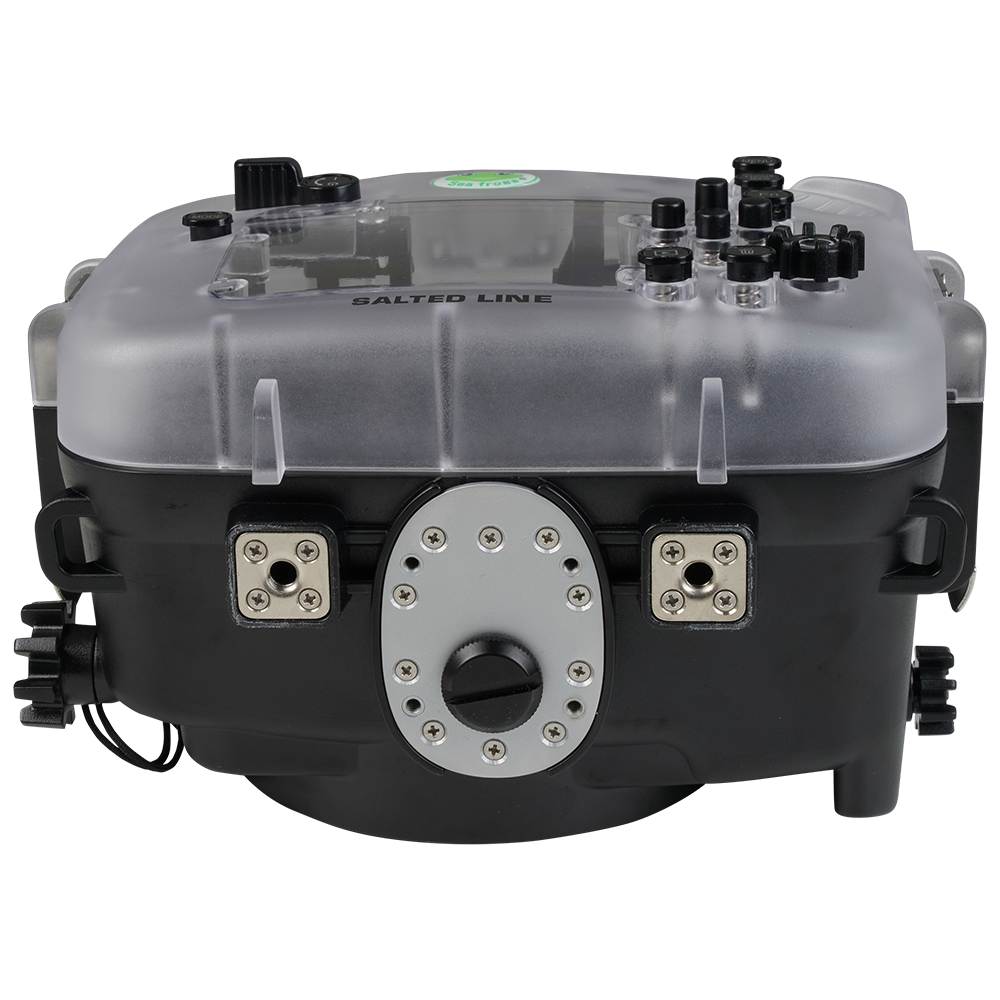

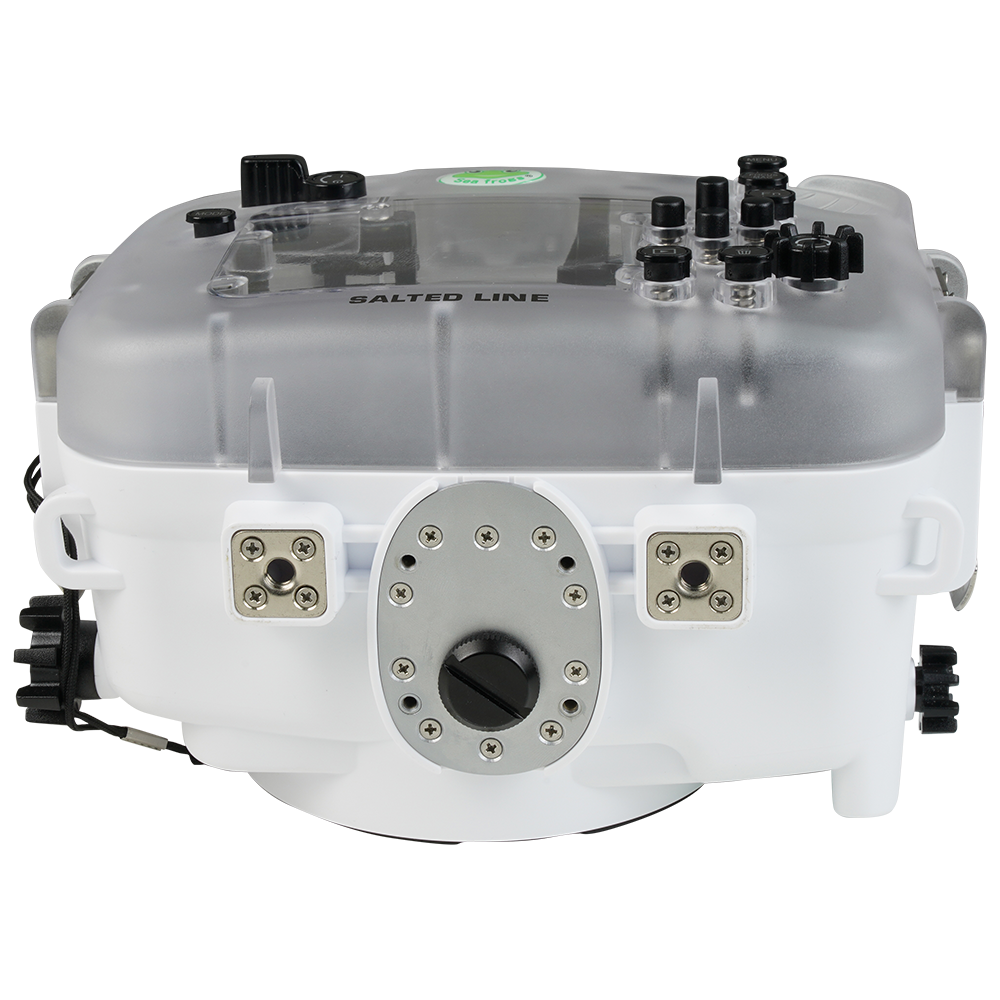

- Two stainless steel mounting plates 1/4" thread
- The reinforced metallic bottom plate

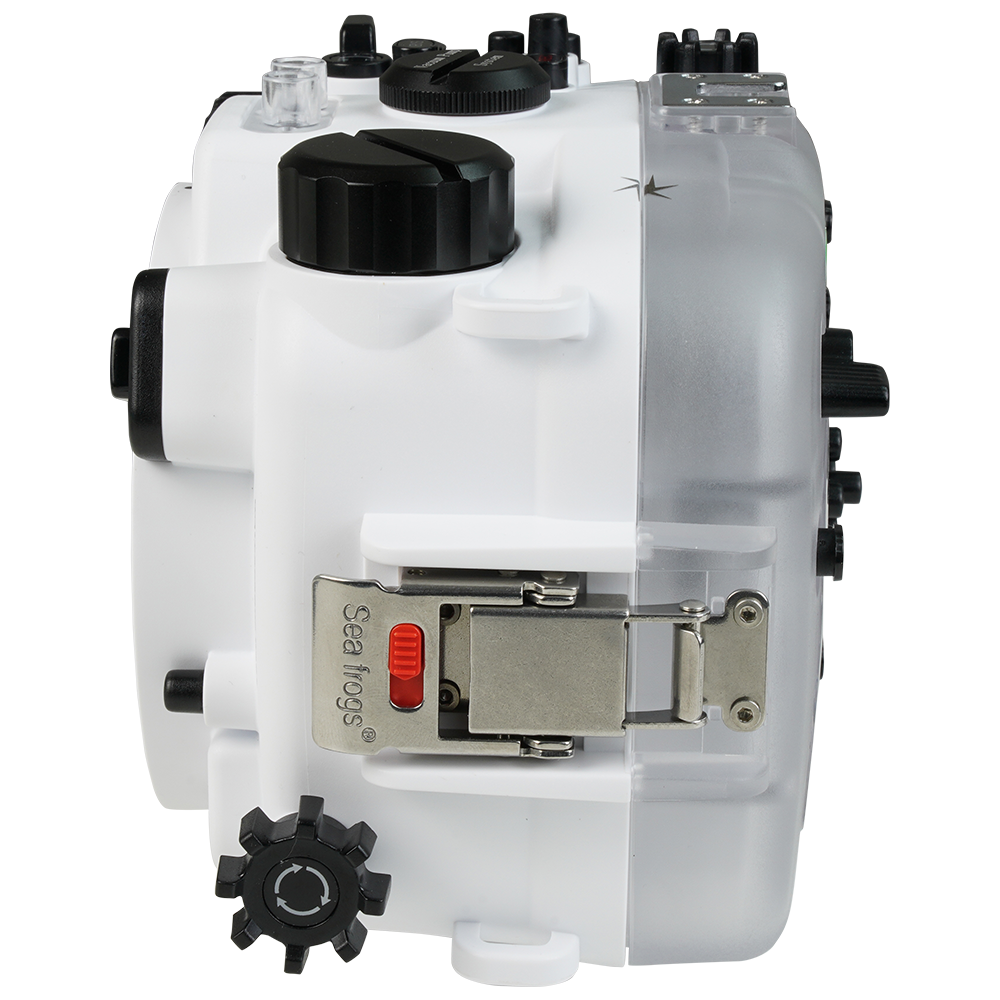

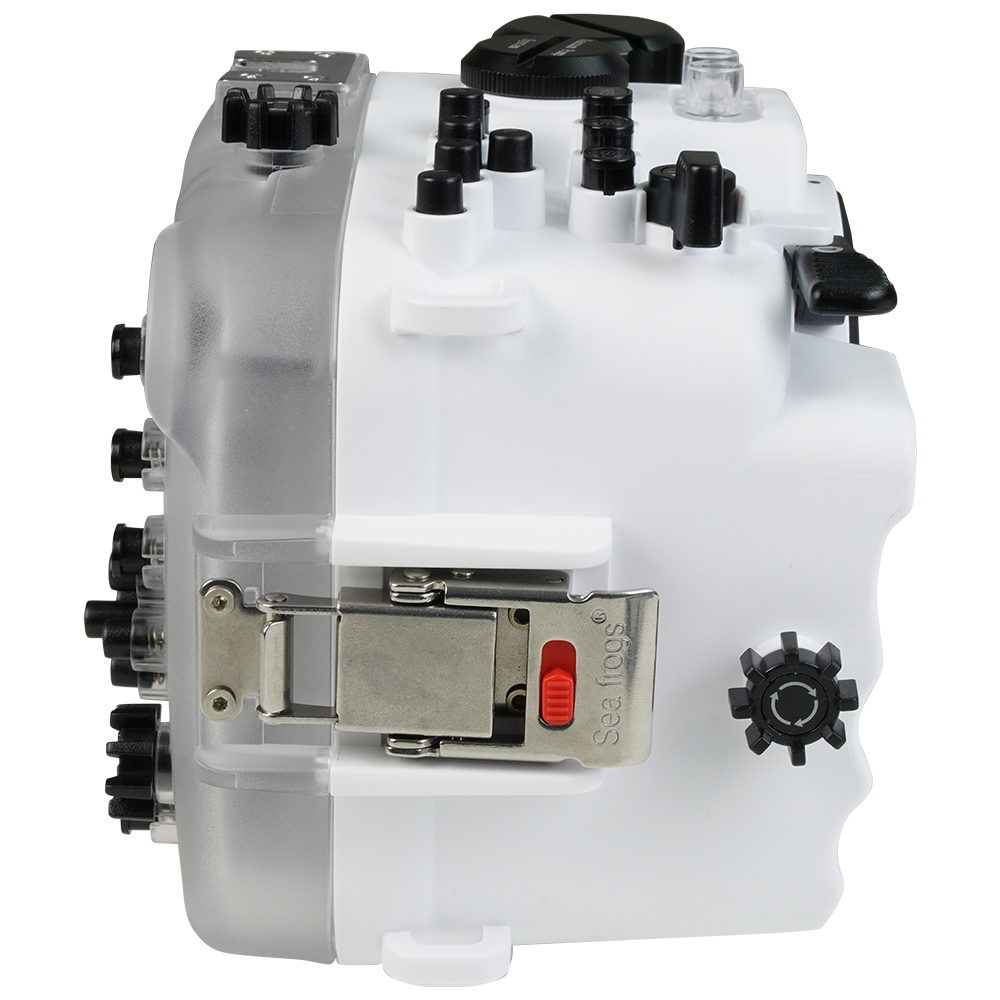

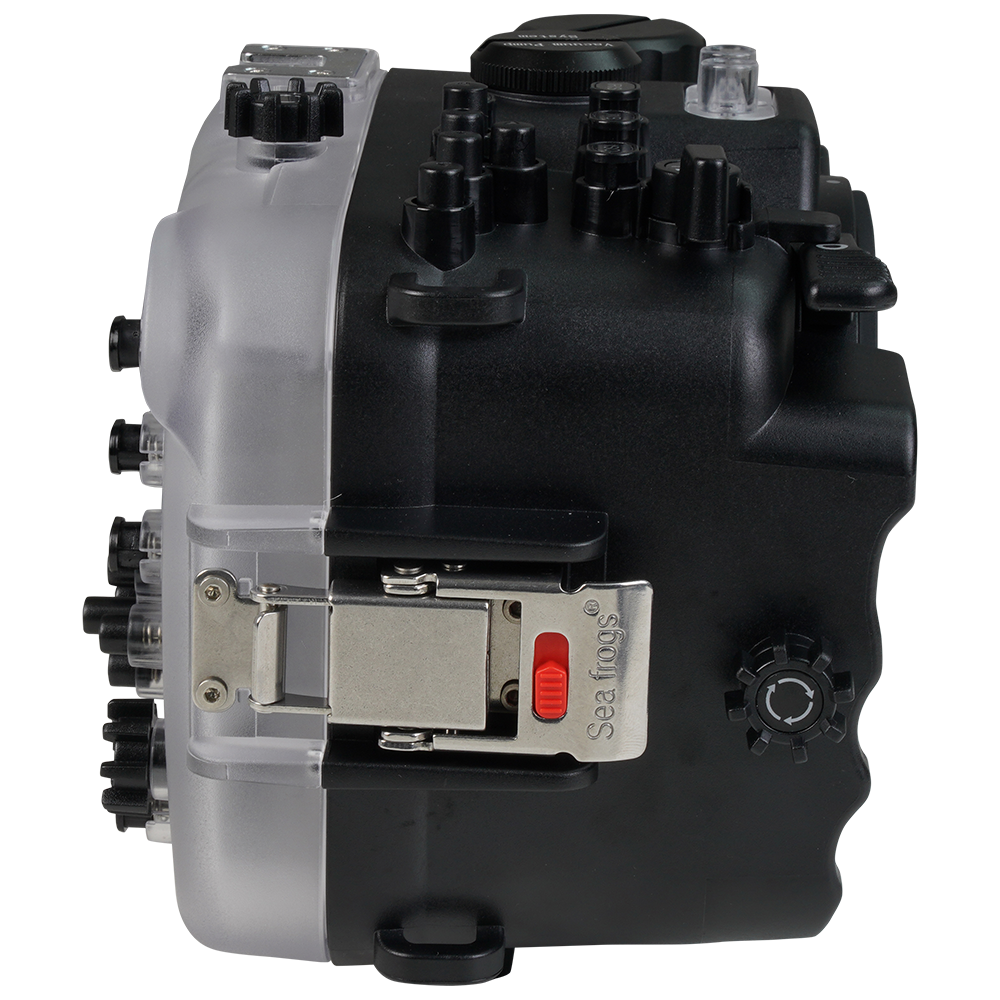

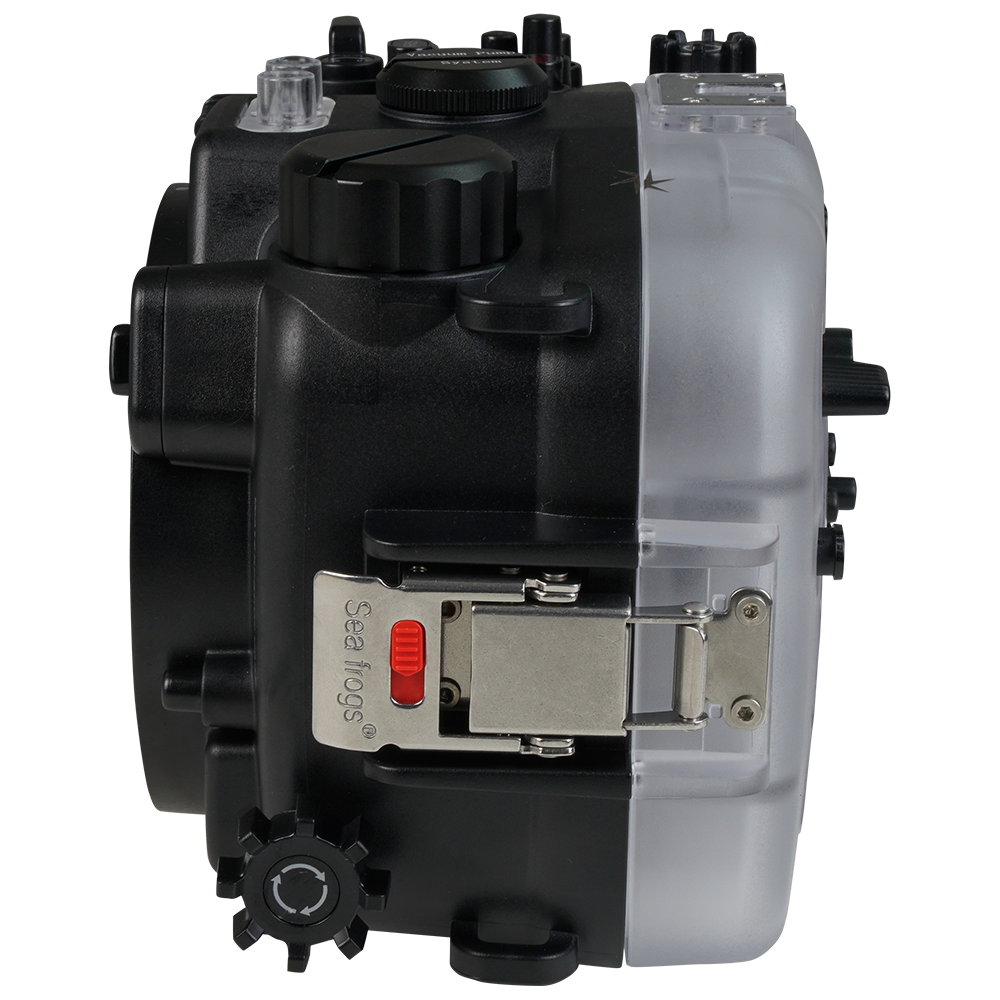

- Dual-sided metal latch locking system
- Detachable shutter grip with 2-stage trigger (not included)
- O-ring sealed buttons with spring
Connect an external strobe with this housing. It will require a fiber-optic cable (purchase here) and a flash trigger (purchase here).
FAQ
The Salted Line housing is rated for depths of up to 40 meters (130 feet), ensuring reliable underwater performance.
The housing uses a 90mm bayonet mount, compatible with all Salted Line / Sea Frogs dome and flat ports for that bayonet size.
No port is included. Ports are sold separately.
Inspect and lubricate the O-ring before every dive. Replace O-rings at least once per year or every 50 dives. Use only Salted Line / Sea Frogs silicone grease — third-party greases may cause leaks.
Yes. The FX3/FX30 housing includes an integrated M33 threaded HDMI bulkhead interface for connecting an external monitor or recorder underwater.
Yes — the housing is designed to fit both the Sony FX3 and FX30 cinema-line cameras.
Specification
Bayonet
- Mount90mm (3.54'')
Materials
- Polycarbonate
- ABS Plastic
- Stainless Steel
- EPDM Rubber
Dimensions (body only)
- Width200mm (7.87'')
- Height155mm (6.1'')
- Length135mm (5.31'')
- Weight±1170g (2.58lb)
- Depth rating40m (130ft)

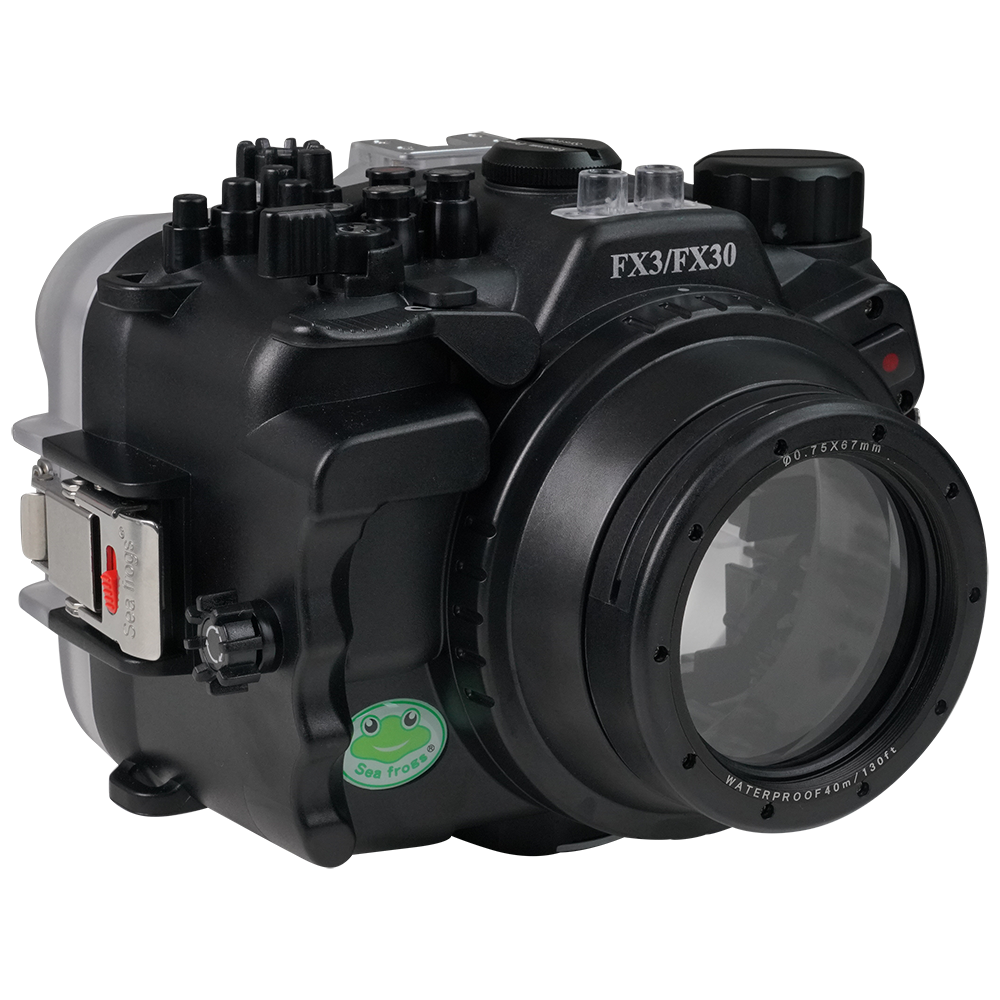

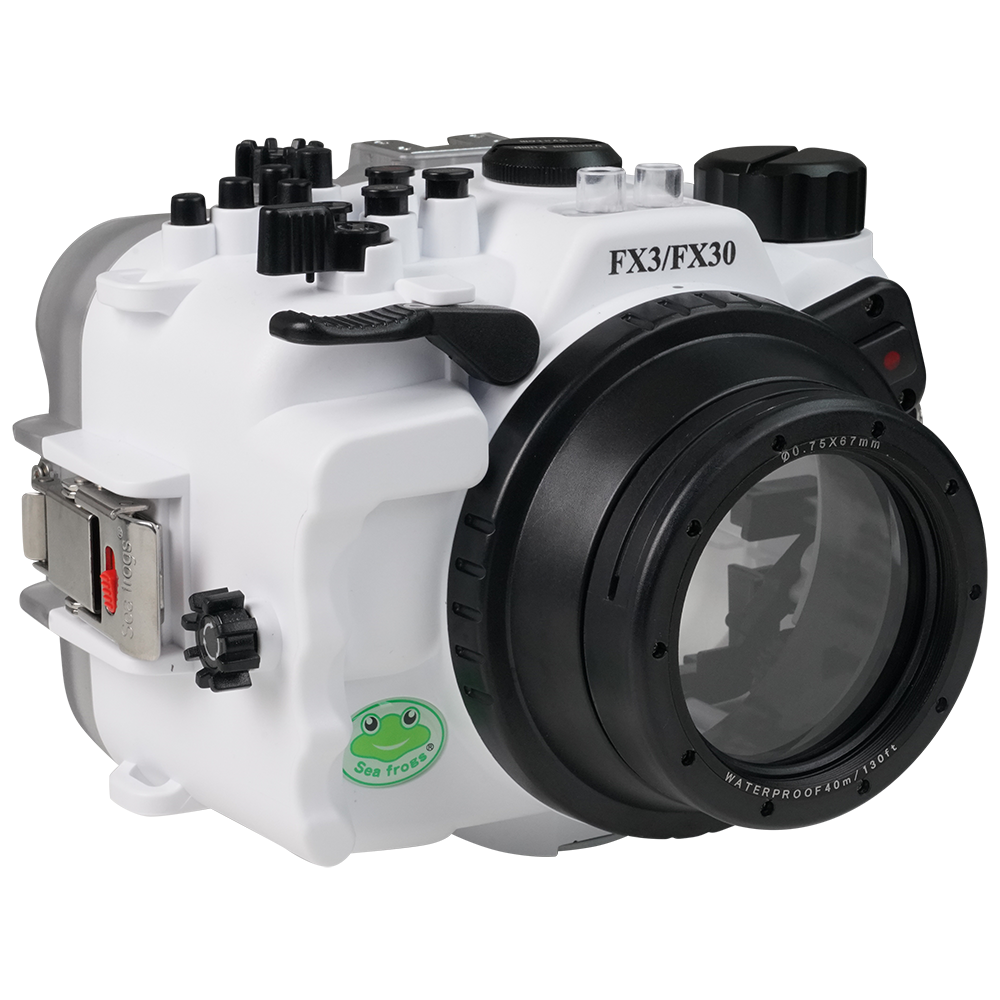

67mm Thread Super Short Flat Port
- Length40mm (1.57'')
- Weight±178g (0.39lb)
- Depth rating40m (130ft)
Compatible Lenses
Sony Lenses:
- Sony E 20mm F2.8 (autofocus only) Focus Gear not Available
- Sony E 30mm F3.5 E-Mount Macro (autofocus only) Focus Gear not Available
- Sony E16-50 f3.5-5.6 PZ OSS (autofocus only) Zoom gears are not available for the Sony FX3/FX30 and ZV‑E1/ZV‑E10 models that rely on in‑camera zoom control.
- Sony E16-50 f3.5-5.6 PZ OSS II (autofocus only) Zoom gears are not available for the Sony FX3/FX30 and ZV‑E1/ZV‑E10 models that rely on in‑camera zoom control.
Sigma Lenses:
- Sigma 19mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available
Compatible Cameras
Sony Cameras:
- FX3
- FX30
Package Includes
- Salted Line CH FX3/FX30 Underwater Housing for Sony FX3/FX30 Cameras | 67mm Thread Super Short Flat Port | Optical Glass | White ×1

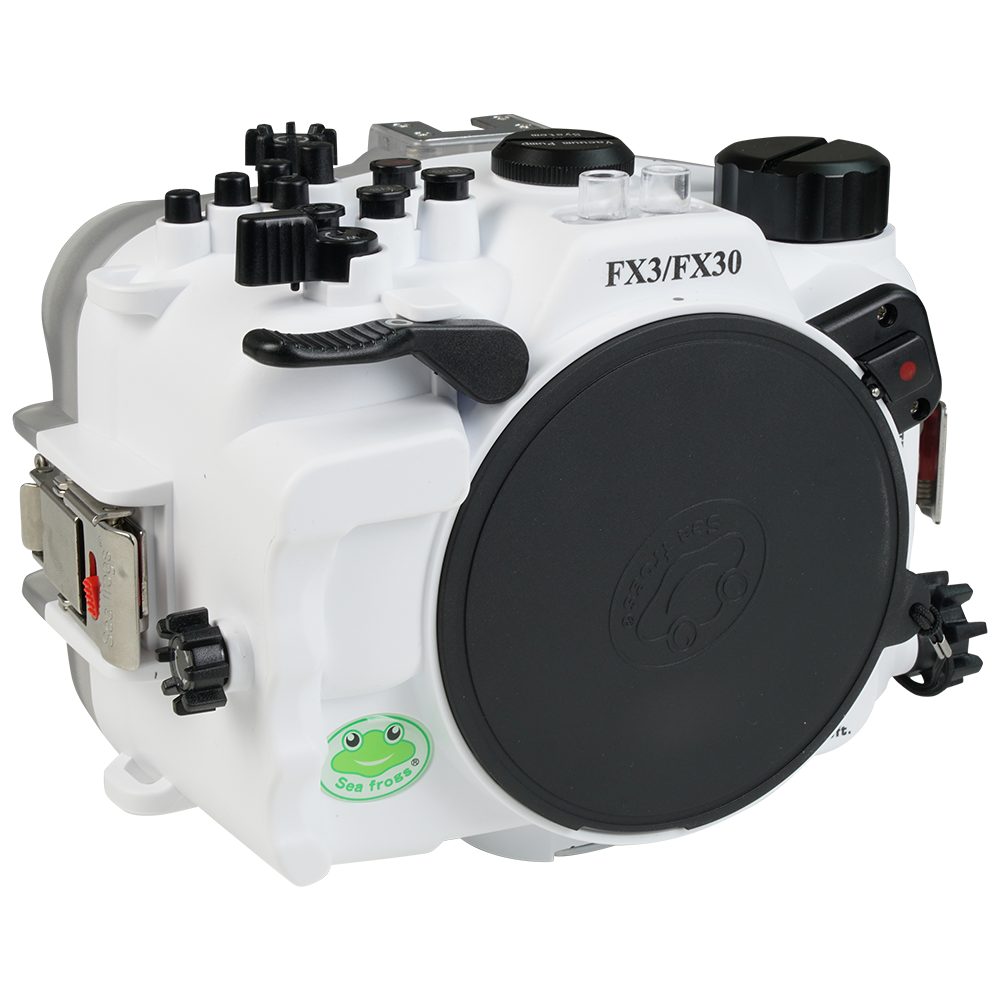

- Port Cap (Front) ×1
- Port Cap (Back) ×1
- Spare O-ring Set ×1
- Silicone grease (5 ml) ×1
- Housing body cap ×1
Please Note: Camera and lens not included with the housing.
Disclaimer:
Every effort has been made to ensure that the descriptions and images provided are accurate and up-to-date. However, occasional errors may occur, and product features, specifications, or appearances may change without notice. We recommend verifying any details that are critical to your purchasing decision.
