Sea Frogs Salted Line V6 6'' Acrylic Dome Ports for Underwater Camera Housings
6"|Acrylic|V6 Dome Port|80mm Bayonet
The Sea Frogs 6" Acrylic Dome Port V6 comes with its 40mm (1.57'') extension adapter ring. Designed with a 80mm (3.15'') bayonet mount.
Key Features
- Sea Frogs 80mm Bayonet Mount
- 40mm Extension Adapter Ring
- Dome Diameter 152.4mm (6″)
- Dome Lens Shade
FAQ
Rated for depths of up to 40 meters (130 feet).
This dome uses a 80mm (3.15'') bayonet mount via the V6 extension adapter ring. Compatible housings are listed below.
Yes — this port includes its 40mm extension adapter ring.
Acrylic domes give excellent image quality in most conditions and are lighter, more affordable and repairable — light scratches can be polished out. Optical glass is slightly sharper in demanding conditions and far more scratch-resistant, but it cannot be repaired once it is damaged.

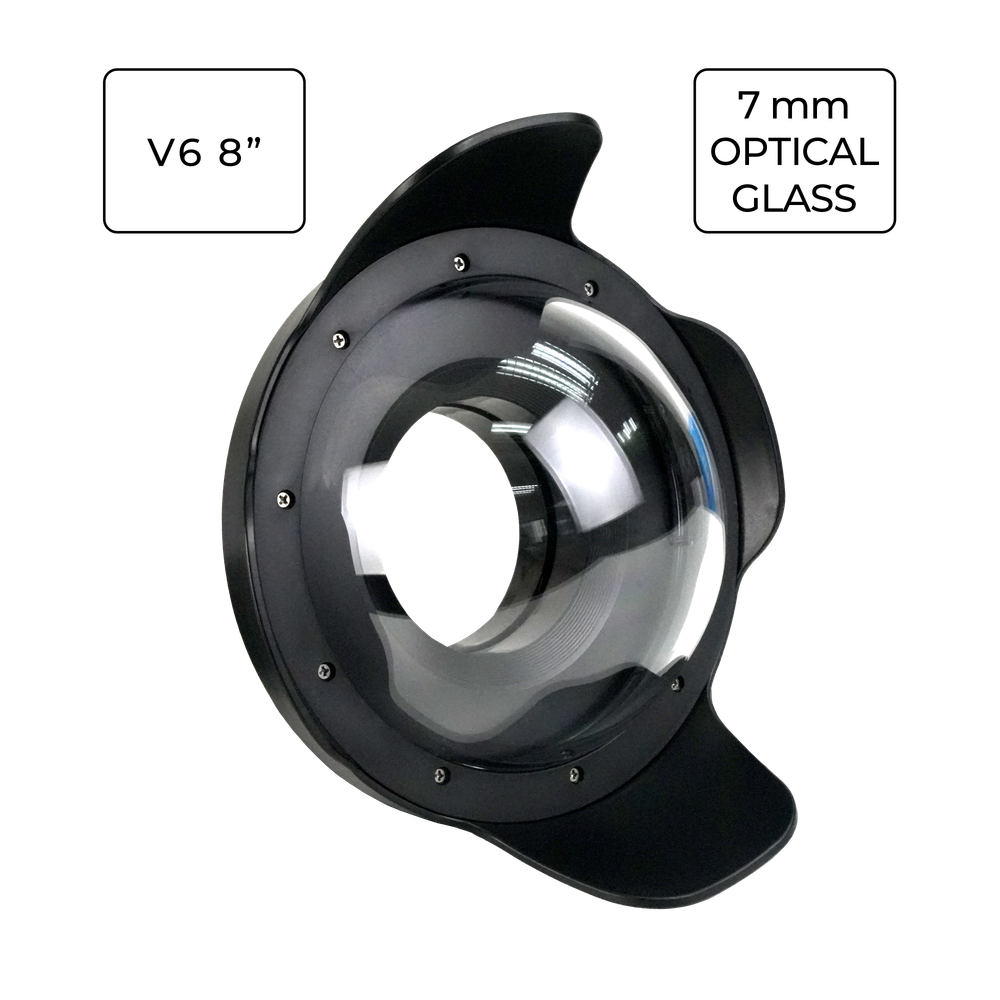

The 6″ dome delivers excellent image quality in most conditions while staying compact and travel-friendly, which makes it the usual choice. The 8″ dome gives slightly better edge sharpness and a cleaner over-under split shot, at the cost of size, weight and price.

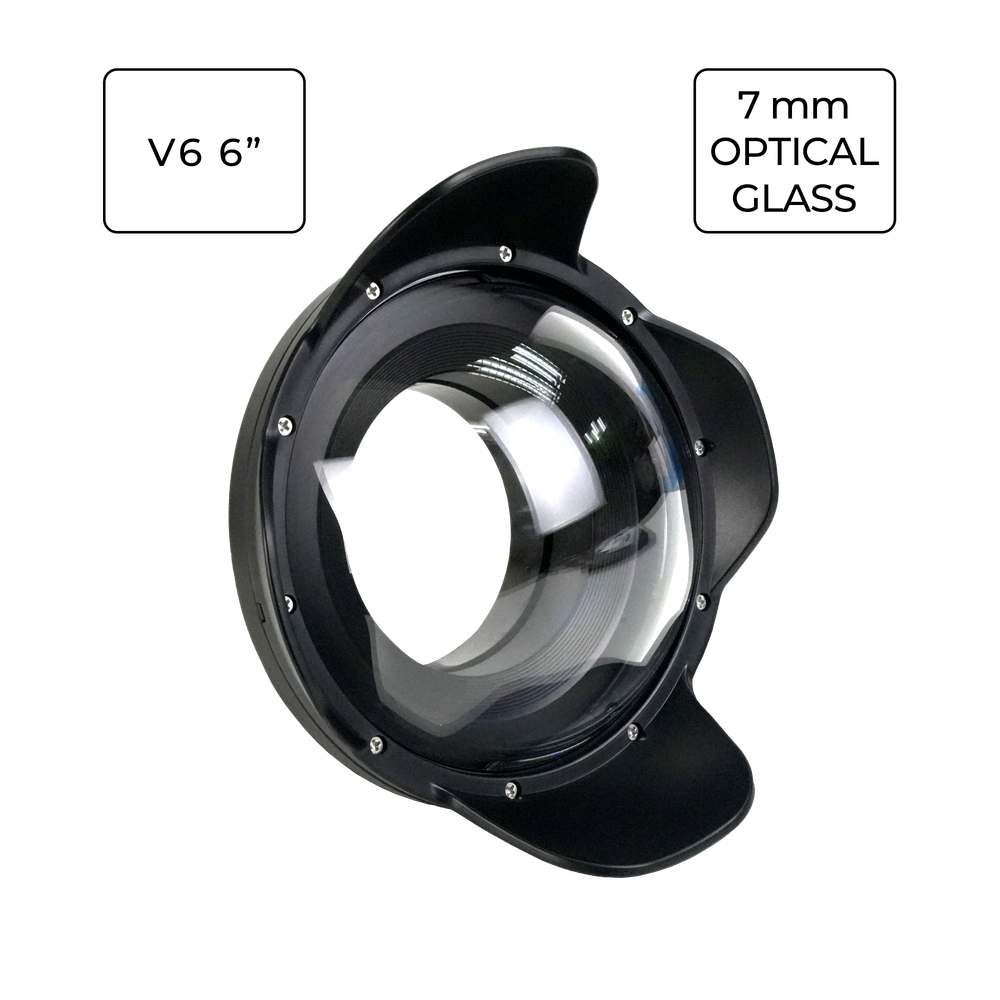

Optically they are the same dome. The standard carries a petal lens shade, which keeps stray light off the dome and gives the rim some protection — the usual choice for diving. The Surf Edition leaves the shade off: there is less for moving water to push against, so the rig is easier to hold steady in the surf zone and there is nothing to catch when you punch through a wave.
Specification
Bayonet
- 80mm (3.15'')
Materials
- Acrylic
Dimensions
- Width185mm (7.28'')
- Height205mm (8.07'')
- Length87mm (3.43'')
- Weight±470g (1.036lb)
Compatible Lenses
Sony Lenses:
- Sony E 10-18mm F4 OSS (autofocus, manual zoom gear available)
- Sony E 16-70mm F4 ZA OSS (autofocus only) Zoom Gear not Available
- Sony E 18-55mm F3.5-5.6 OSS (autofocus only) Zoom Gear not Available
- Sony E 20mm F2.8 (autofocus only) Focus Gear not Available
- Sony E 24mm F1.8 ZA (autofocus only) Focus Gear not Available
- Sony E 50mm F1.8 OSS (autofocus only) Focus Gear not Available
- Sony E16-50 f3.5-5.6 PZ OSS (autofocus, manual zoom gear available)
- Sony E16-50 f3.5-5.6 PZ OSS II (autofocus, manual zoom gear available)
- Sony FE 16-35mm F4 ZA OSS (autofocus only) Zoom Gear not Available
- Sony FE 24-70mm F4 ZA OSS (autofocus only) Zoom Gear not Available
- Sony FE 28-70mm F3.5-5.6 OSS (autofocus only) Zoom Gear not Available
- Sony FE 28mm F2 (autofocus only) Focus Gear not Available
- Sony FE 28mm F2 + Ultra Wide Converter SEL075UWC (autofocus only) Focus Gear not Available
- Sony FE 35mm F2.8 ZA (autofocus only) Focus Gear not Available
- Sony FE 55mm F1.8 ZA Carl Zeiss Sonnar T* (autofocus only) Focus Gear not Available
Sigma Lenses:
- Sigma 10-18mm F2.8 DC DN E-Mount (autofocus, manual zoom gear available)
- Sigma 16mm F1.4 DC DN E-Mount (autofocus, manual focus gear available)
- Sigma 19mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available
- Sigma 30mm F1.4 DC DN | C E-Mount (autofocus only) Focus Gear not Available
- Sigma 30mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available
- Sigma 60mm F2.8 DN Art E-Mount (autofocus only) Focus Gear not Available
Samyang Lenses:
- Samyang 12mm F2.0 AF E-Mount (autofocus, manual focus gear available)
Compatible Housings
Sony Housings:
Package Includes
- Sea Frogs Salted Line V6 6'' Acrylic Dome Ports for Underwater Camera Housings ×1
- Spare O-ring ×1
- Silicone grease (5 ml) ×1
